TOPPING E30 DAC Decoder AK4493 XU208 32BIT/768K DSD512 Touch Operation with Remote Control Hi-Res
Regular price
$239.00
$198.00
17% OFF
Spec:
PCM
USB :44.1kHz-768kHz 16bit-32bit
OPT/COAX : 44.1kHz-192kHz 16bit- 24bit
DSD (Native)
USB :DSD64-DSD512
OPT/COAX :Not supported
DSD (DoP)
USB : DSD64-DSD256
OPT/COAX :Not supported
Output Voltage：2Vrms@0dBFS
THD+N：<0.0003% @1kHz A-weighting
Noise：<2uVrms @A-weighting
Crosstalk：-130dB @1 kHz
SNR：>121dB @ 1kHz
Dynamic Range：119dB @1kHz
Channel Balance：<0.3 dB
Features:
1. AK4493 DAC chip
AK4493 is a new generation of premium model AK4490 from AKM.
-11 3dB :Distortion
1 26dB* :Dynamic range
DSD :Support DSD512
PCM :Support 768k
* This data is based on the MONO mode of chip, not equal to specs of E30.
2.Support DSD512 and PCM32bit/768kHz
E30 uses 2nd generation XMOS XU208, USB supports up to PCM32bit768kHz and DSD512, which is far more than CD and SACD. We also customize the driver (for Win7 and above) from Thesycon to get a better performance with your computer.
3.AK41 18 receiver
AK4118 is currently the S/PDIF receiver with lowest jitter, compatible with optical and coaxial connection that support up to 24bit/ 192kHz.

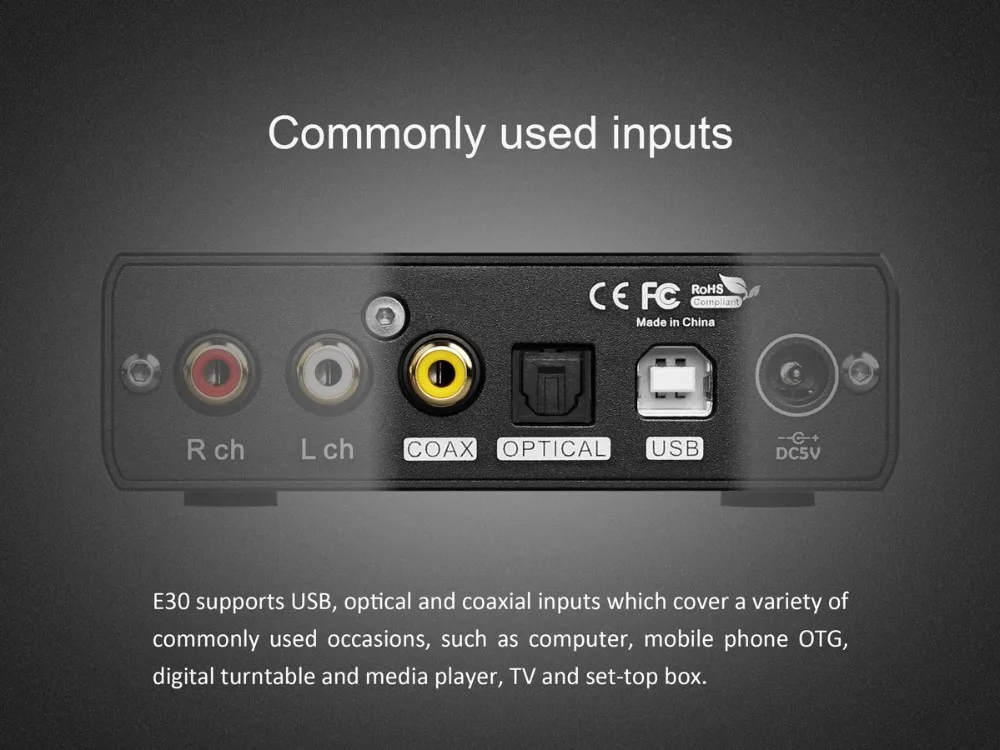

4.Commonly used inputs
E30 supports USB, optical and coaxial inputs which cover a variety of commonly used occasions, such as computer, mobile phone OTG,digital turntable and media player, TV and set-top box.
5.5V power supply, anytime and anywhere
Using 5V power supply, E30 can easily access the working power supply anytime and anywhere in nowadays. You can power the E30 by USB port of computer, mobile phone charger or portable charger. When using portable charger, E30 turns into a portable DAC and bring the Hi-Res music around.
6.DAC filter mode
E30 is capable of providing 6 filter modes under PCM decoding,2 filter modes under DSD decoding, which slightly adjust the details. (Note: it is not the same as EQ function.)
7.Auto turn on/off
E30 has the function of auto turn on and off. It will automatically enter into stand by when the input signal is lost or unavailable in 1 minute. Once detecting any signal of inputs, it will turn on and switch to this input.
8.DAC + Pre-amp application
E30 has built-in volume control function that can adjust the volume from -99dB to 0dB by using the remote control, so you are able to directly connect E30 to power amplifier or active speakers, and control the volume of E30 through remote control.
9. Pure DAC apptication
E30 is able to fix to maxmum output level so that it can be worked as a pure DAC. In this mode, DSD signal will bypass the DATT Soft Mute and 02 Modu-lator to provide you a pure/direct DSD performance.
