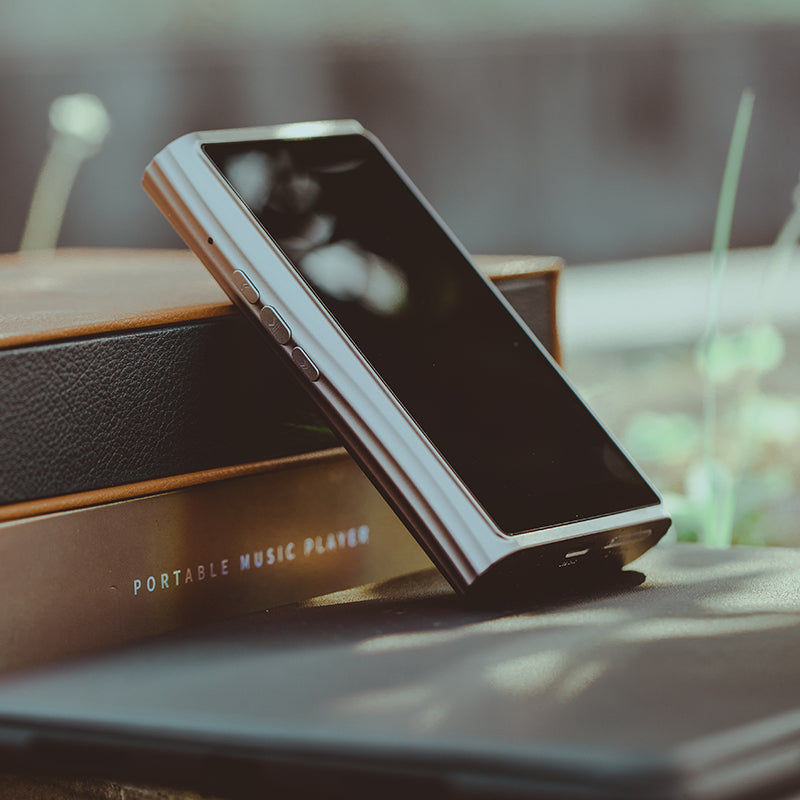

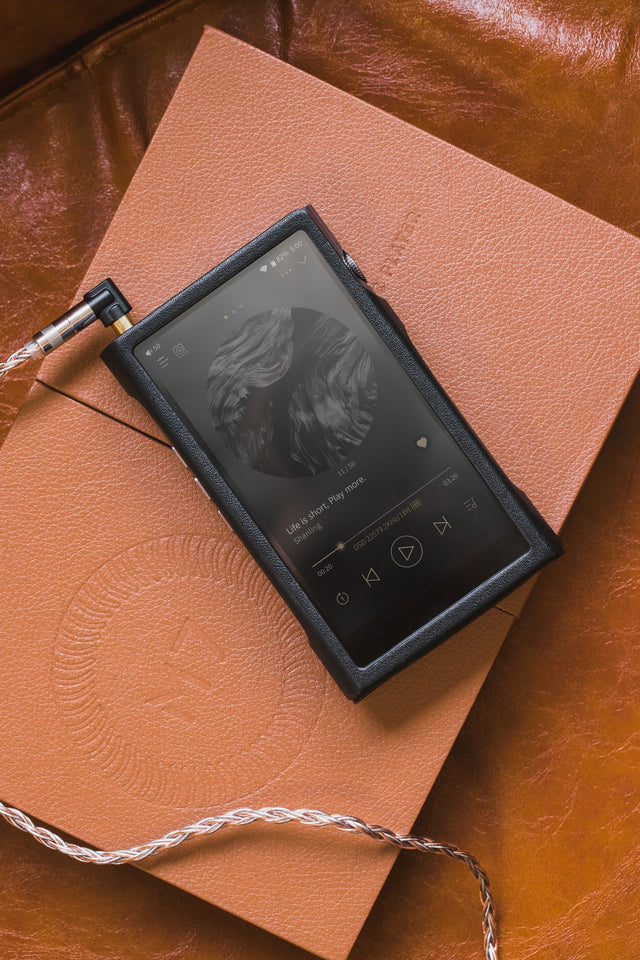

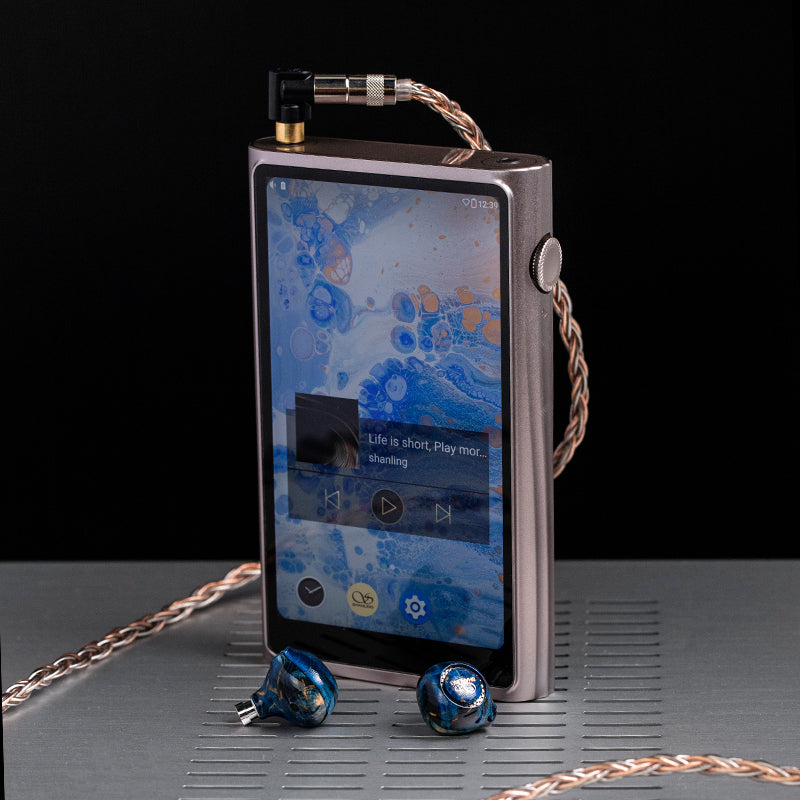

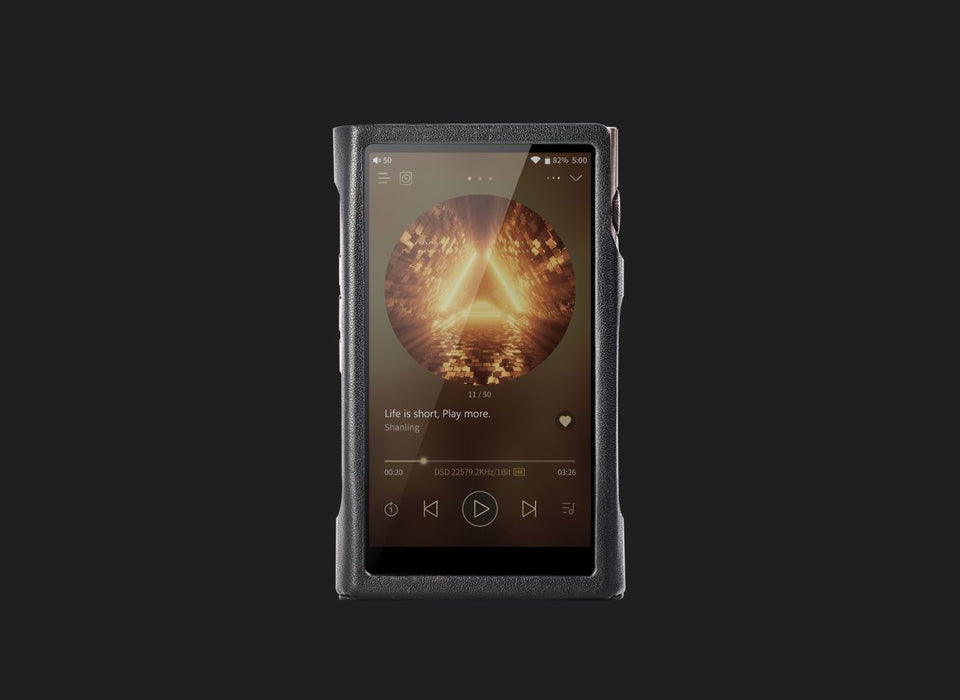

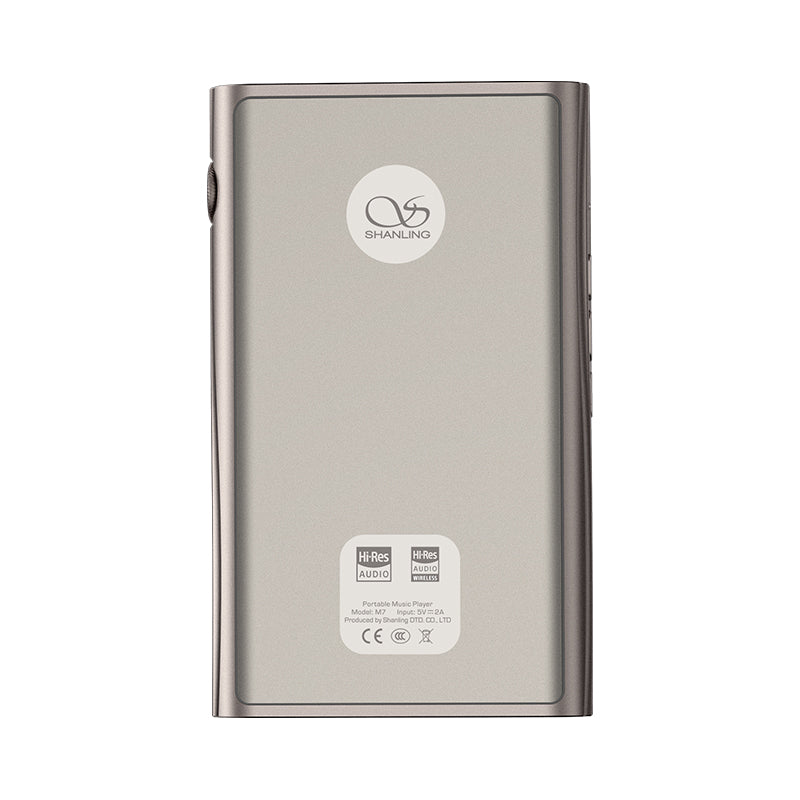

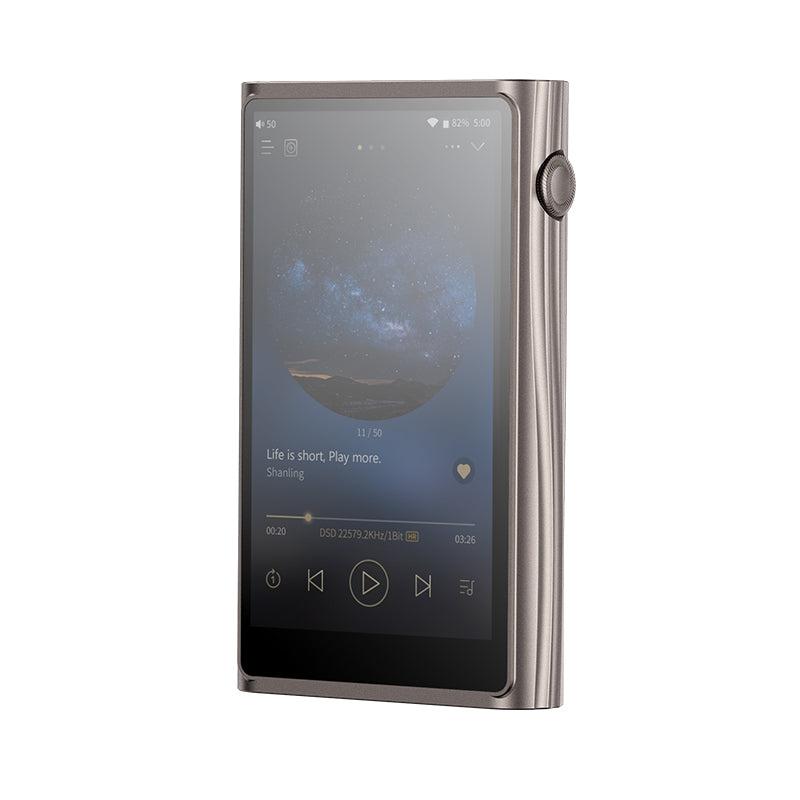

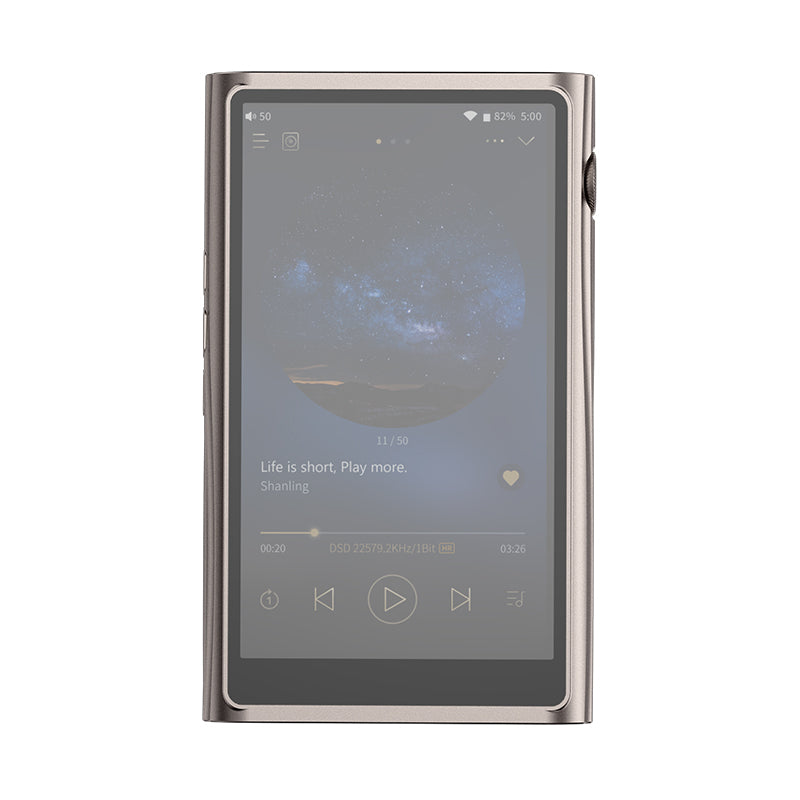

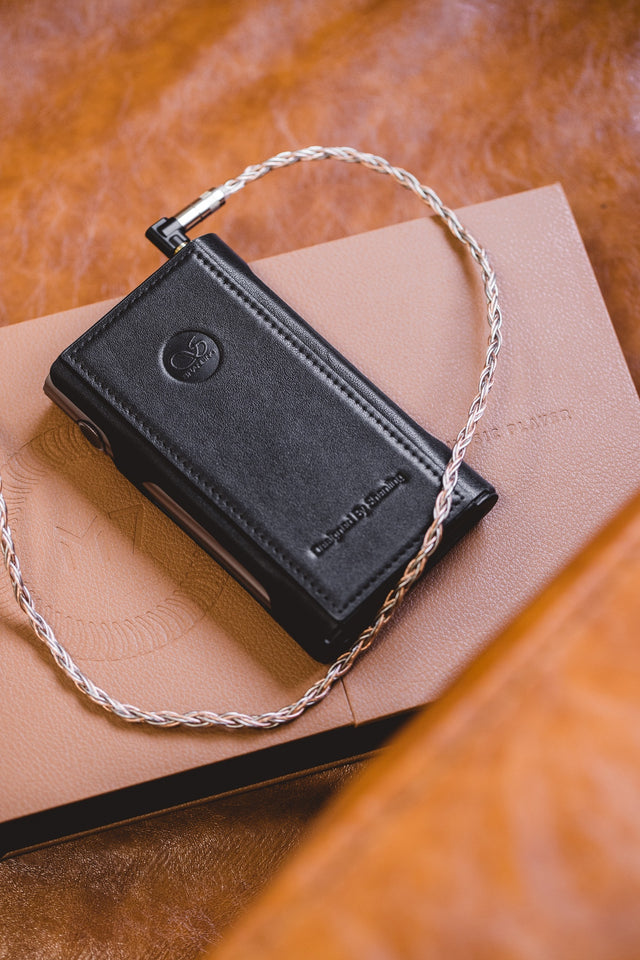

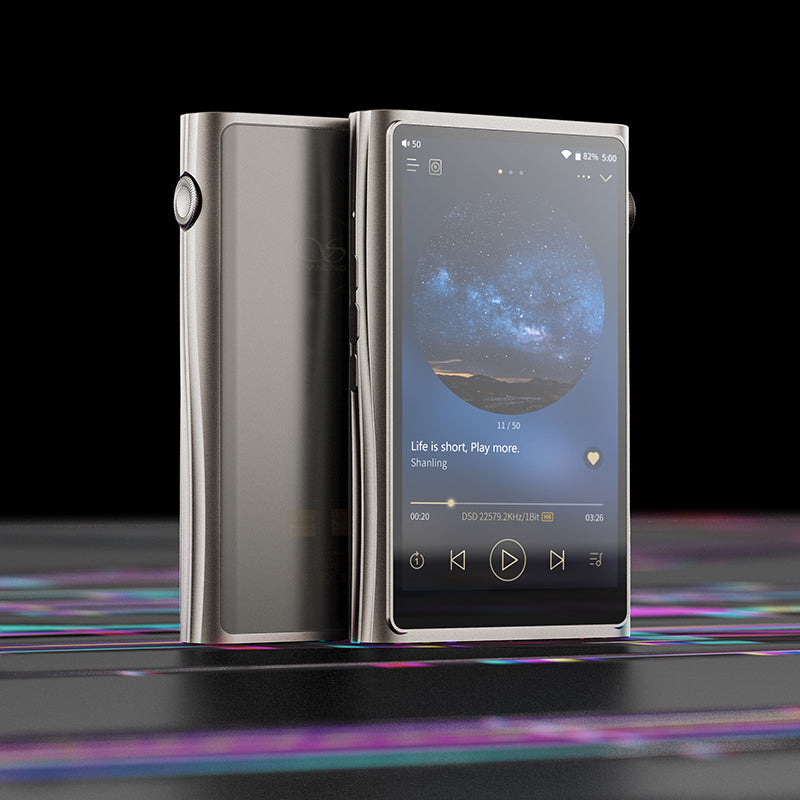

Shanling M7 Android Portable Flagship Digital Audio Player ES9038Pro DAC

Features:

• Premium ES9038Pro flagship DAC chipset.
• Amplification circuit: ADA4896x2+MUSE8920+OPA2211+BUF634.
• Powerful output thrust.
• Clean and detailed sound presentation.
• True Hi-Res decoding(PCM 32Bit/768kHz, DSD512, 16x MQA).
• Dual headphone outputs(3.5mm SE+4.4mm Bal).
• 5” full-HD 1080P display.
• High-Res Bluetooth V5.0 connectivity(LDAC+LHDC+APTX HD and more).
• Open Android 10 OS.
• Multiple application support.
• Lightning fast performance with powerful SoC chip.
• Large 7000mAh battery.
• Battery Life: up to 10 hours in single-ended mode, up to 8.5 hours in balanced mode.

Output Parameters(3.5mm Single-Ended):

• Output Power: Up to 406mW @ 32Ω.
• Frequency Response: 20Hz-40kHz.
• THD+N: 0.0007%.
• Channel Separation: 75dB.
• Dynamic Range: 126dB.
• SNR: 126dB.
• Noise: >116dB.
• Output Impedance: <1Ω.

Output Parameters(4.4mm Bal):

• Output Power: Up to 900mW @ 32Ω.
• Frequency Response: 20Hz-40kHz.
• THD+N: 0.0007%.
• Channel Separation:115dB.
• Dynamic Range: 128dB.
• SNR: 128dB.
• Noise: >113dB.
• Output Impedance: <1Ω.

Following the footsteps of the ultimate flagship Shanling M9 Android Digital Audio Players, Shanling has now announced the latest Shanling M7 Music player. It adopts a flagship-grade ES9038Pro audio decoding chip along with an in-house developed amplification circuit for ultimate performance. Shanling has featured a powerful Snapdragon 665 SoC bringing the users an open Android 10 experience!!

Based On The Design Architecture Of Almighty Shanling M9:

Shanling has designed the latest Shanling M7 with the same design and architecture as the ultimate flagship M9. Shanling has equipped it with a fast eight-core SoC chip, featuring a single-piece aluminum design, and a single-board integrated acoustic circuit from the M9. They have packed the M7 in a smaller and compact body in comparison to the M9.  At a far glance, The M7 looks like a younger sibling to the M9!!

Top-Quality Performance With Flagship Decoding Chip:

Shanling has featured the flagship ES9038Pro Hi-Res decoding chip in the M7. The ES9038Pro is a 32-Bit 8-Channel DAC that produces a clean signal when decoding Hi-Res audio. With a capable USB receiver onboard, the M7 supports high-resolution 32-Bit/768kHz PCM and native DSD512 signals.

Full 16X Master Quality Support:

Shanling has got years of expertise in designing HiFi audio gears. They have got their hands on designing some of the best DAC/AMPs and Audio Players in the market. The latest M7 has full 16x support for MQA(Master Quality Authenticated) files bringing us a true studio-quality performance right in our pocket.

Talk About Power, You Got The Best In Your Hands:

With the help of a custom-designed amplification circuit, Shanling has equipped the M7 with powerful amplification circuitry. The player produces a powerful amplification with a noise-free clean background. It houses a 3.5mm SE and a 4.4mm Bal headphone output. The player has got powerful output ratings of up to 400mW & 900mW, more than enough to drive the most demanding IEMs with ease.

Ultra-Fast Performance With Upgraded SoC Chipset:

Shanling M7 is equipped with the latest Snapdragon 665 chipset packing a super speed lag-free user interface. It has also allowed Shanling to upgrade the M7 to the latest Android 10 OS. The device is loaded with 6GB of RAM supporting multi-tasking and countless media applications from the Android Playstore.

Huge 7,000 mAh Battery:

Shanling has featured a huge 7,000mAh battery on the M7. This battery also supports fast charging. With it and a high-power consuming chipset, the M7 achieves a battery life of up to 10 hours on single-ended and up to 8.5 hours on balanced mode.


Specification:
Dimensions: 129 *78*20 mm
Weight: 312g
Display: 5-Inch 1920 * 1080
Operating System: Open Android 10
CPU: Qualcomm Snapdragon 665
Memory : Ram 6GB, ROM 128GB + single Micro SD card slot
Hi-Res support: 32/768 & DSD512 & MQA 16X
Bluetooth: Bluetooth 5.0, two-way, LDAC, LHDC, aptX HD, aptX, SBC Support.

Wi-Fi: 2.4G/5G, supporting DLNA, Airplay
DAC: ESS ES9038PRO
Amplifier: ADA4896-2 + MUSES8920 + OPA2211 + BUF634
Output Power: Single-ended 400 mW@32Ohm // 900mW@32Ohm Balanced
Output: 3.5mm single ended and 4.4mm balanced
Output impedance: Less than 1 Ohm
Battery: 7000 mAh, supporting 18W quick charging
Battery life: Up to 10 hours in single ended and 8.5 hours in balanced

Single-Ended Output：
1. Output Power
Low Gain： 0.73 V@32 Ohm (17 mW)
Medium Gain： 1.88 V@32 Ohm (110 mW)
High gain： 3.61 V@32 Ohm (406 mW)
2. Frequency Response：20 Hz - 40 KHz (0.2 dB)
3. THD+N：0.0007%
4. Channel separation：75 dB @ 32 Ohm
5. Dynamic Range：126 dB
6. Signal-To-Noise：126 dB
7. Noise：>116 dB(<1.6 uV)（Low Gain）
8. Output Impedance：<1 Ohm

Balanced Output：
1. Output Power
Low Gain： 1.46 V@32 Ohm (66 mW)
Medium Gain： 3.35 V@32 Ohm (350 mW)
High gain： 5.43 V@32 Ohm (920 mW)
2. Frequency Response：20 Hz - 40 KHz (0.2 dB)
3. THD+N：0.0007%
4. Channel separation：115 dB @ 32 Ohm
5. Dynamic Range：128 dB
6. Signal-To-Noise：128 dB
7. Noise：>113 dB(<2.2 uV)（Low Gain）
8. Output Impedance：<1 Ohm
