SHANLING M1 Plus ES9069Q Portable Music Player

SHANLING M1 Plus Hi-res Music Player Portable MP3 ES9069Q DAC Dual SGM8262 Amp DSD512 Bluetooth 5.2 LDAC WiFi DLNA Airplay Tidal

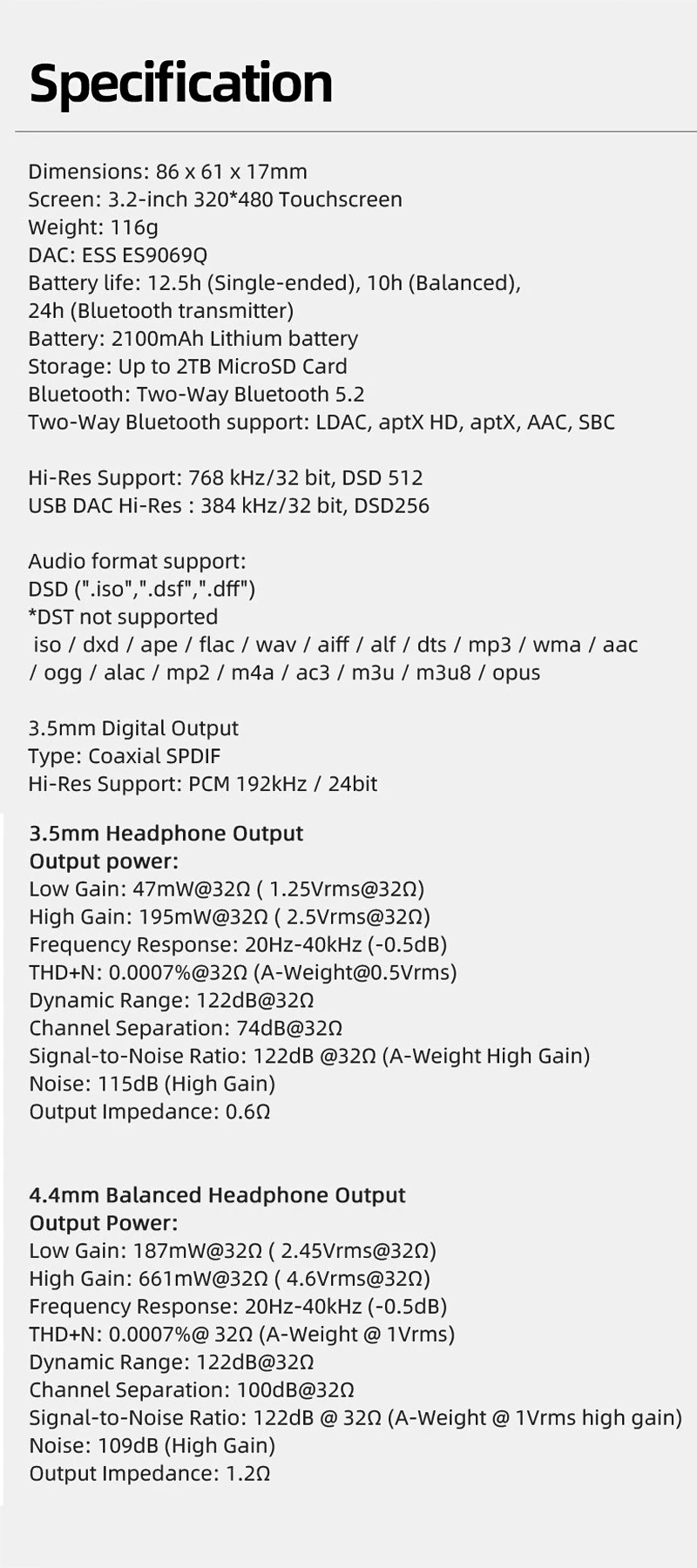

Specification:

Dimensions: 86 x 61 x 17 mm
Weight: 116 g

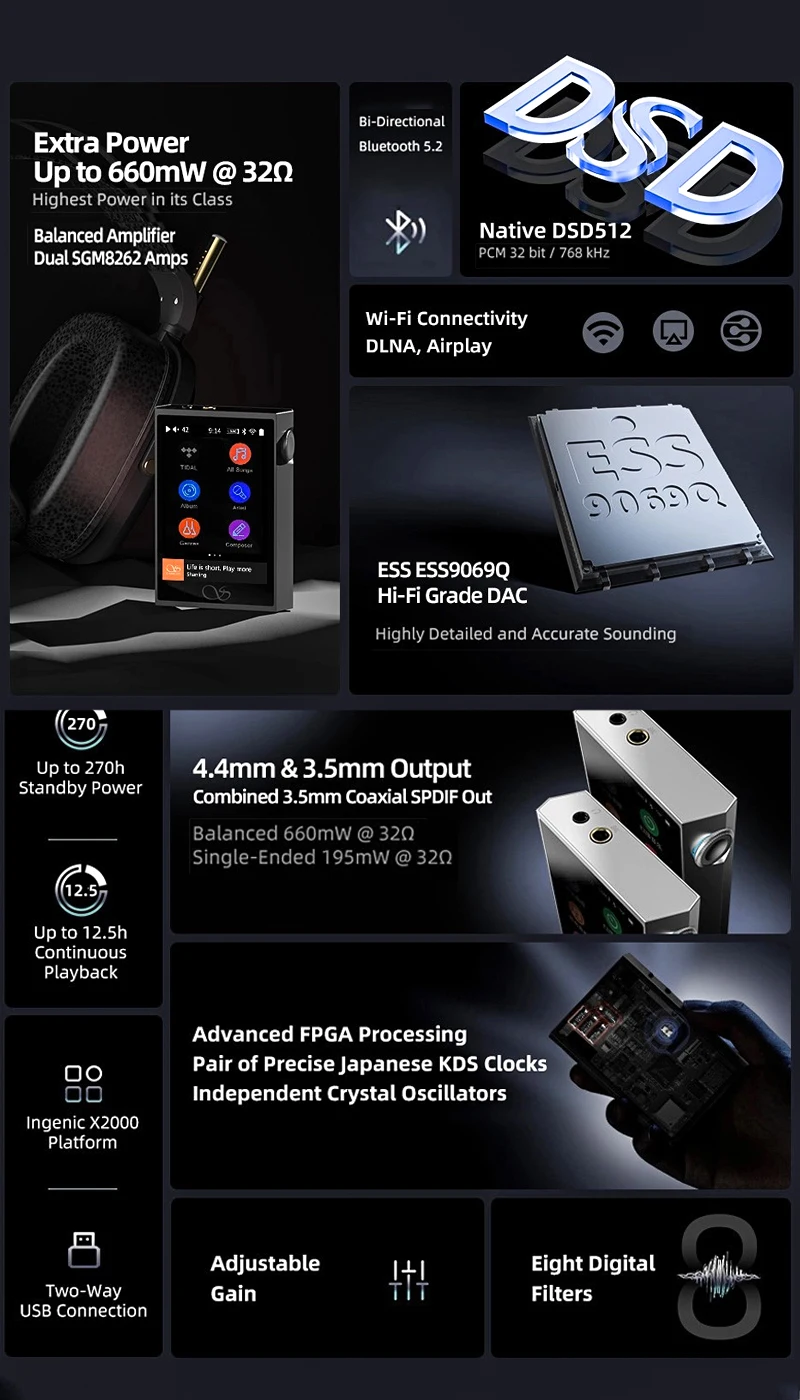

DAC: ESS ES9069Q
Amplifier: Dual SGM8262
Platform: Ingenic X2000

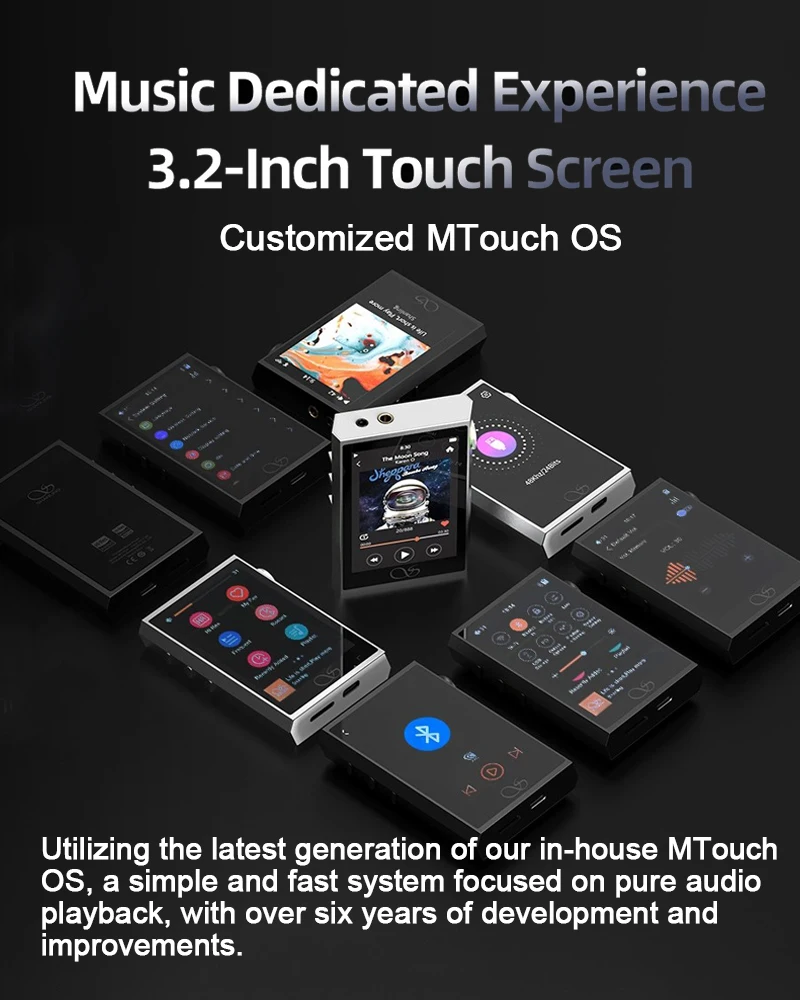

System: MTouch developed by Shanling
Screen: 3.2-inch 320 x 480 Touchscreen
Memory: MicroSD card slot
Hi-Res Support: PCM 32 bit / 768 kHz & DSD512
Wi-Fi: 2.4/5G, supporting DLNA, Airplay and OTA Updates

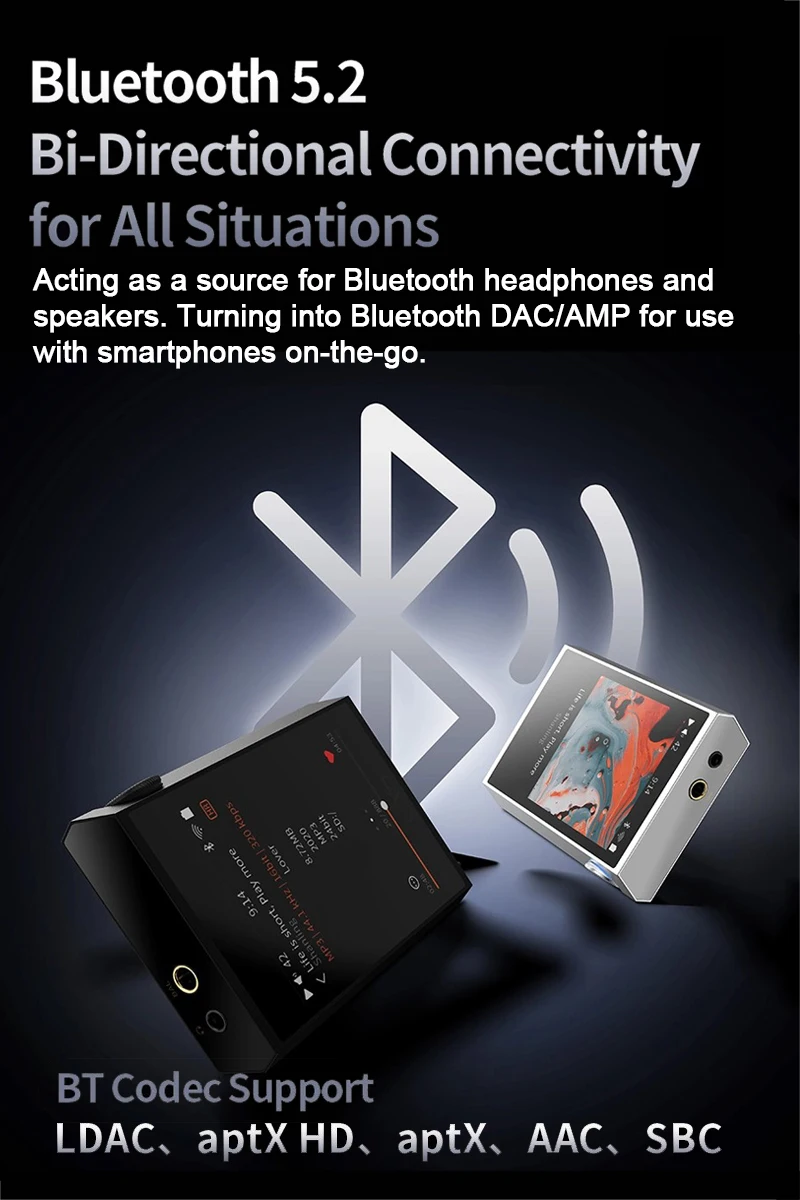

Bluetooth: Upgraded 5.2 with Bi-Directional support of LDAC, aptX HD, aptX, AAC

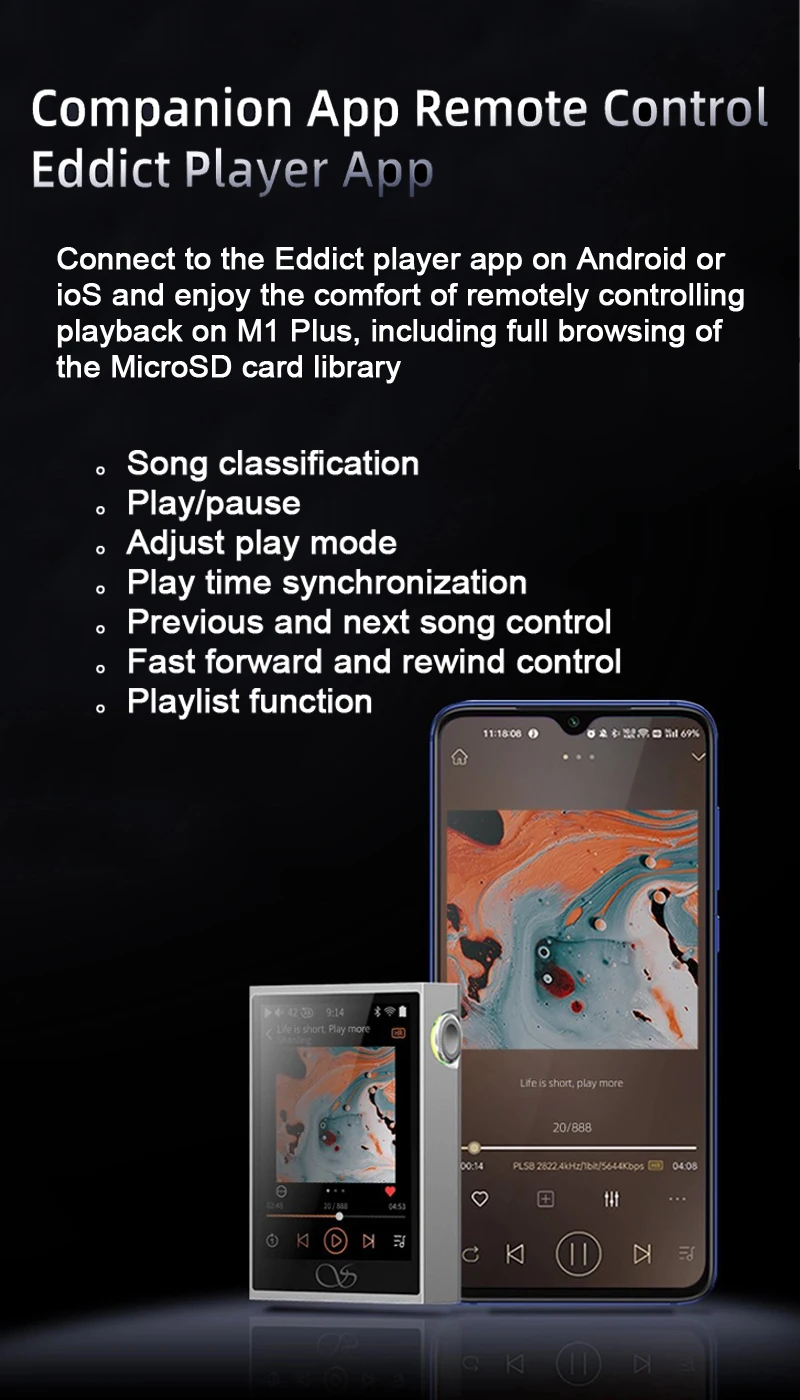

Companion app: Eddict Player app through SyncLink
Connectors: 3.5mm Single-Ended, 4.4mm Balanced, USB-C

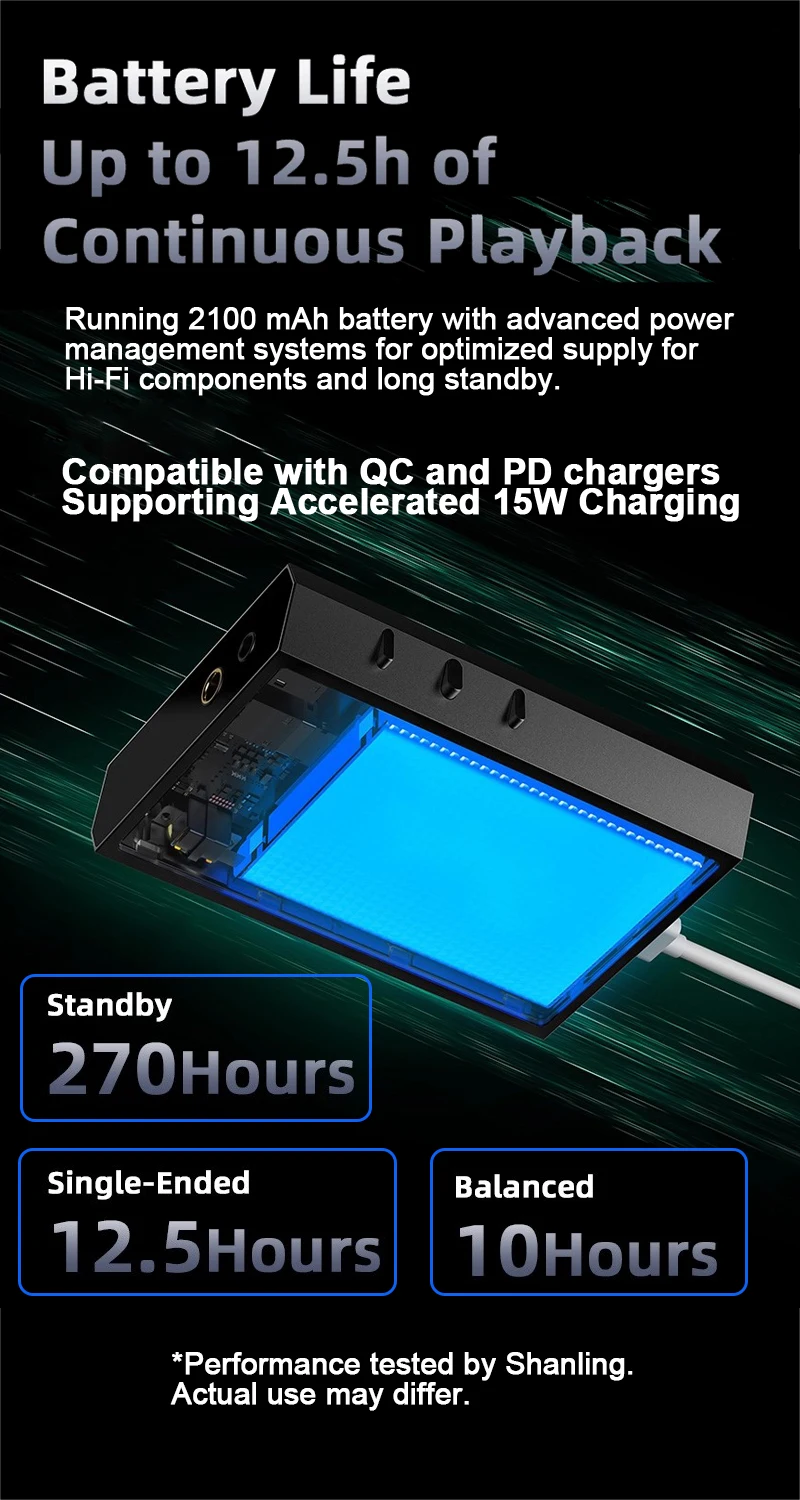

Battery: 2100 mAh
Battery life: Up to 12.5 hours

Single-Ended Output:

Power: 195 mW @ 32 Ohm
THD+N: 0.0007%
Channel Separation: 74 dB
SNR: 122 dB
Output impedance: 0.6 Ohm

Balanced Output:

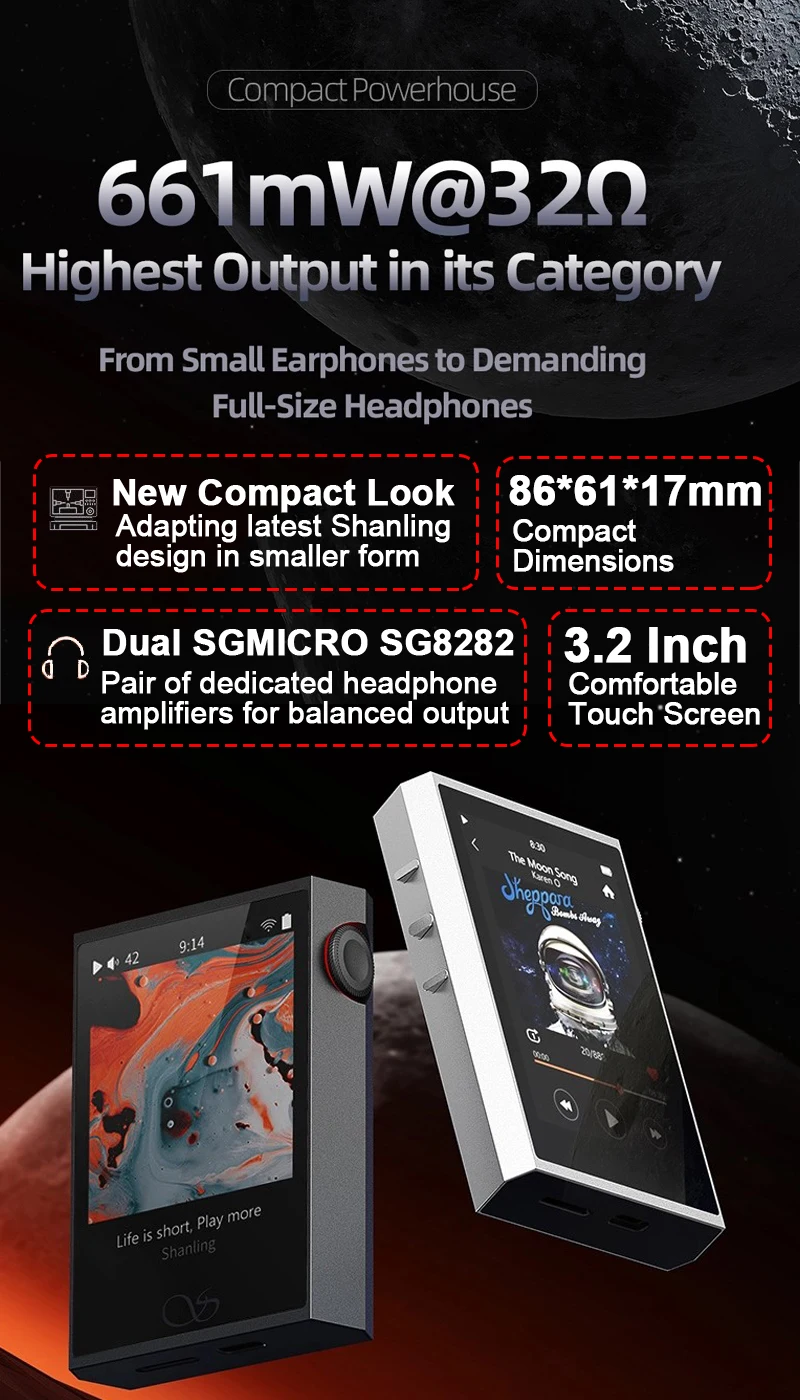

Power: 660 mW @ 32 Ohm
THD+N: 0.0007%
Channel Separation: 100 dB
SNR: 122 dB
Output impedance: 1.2 Ohm

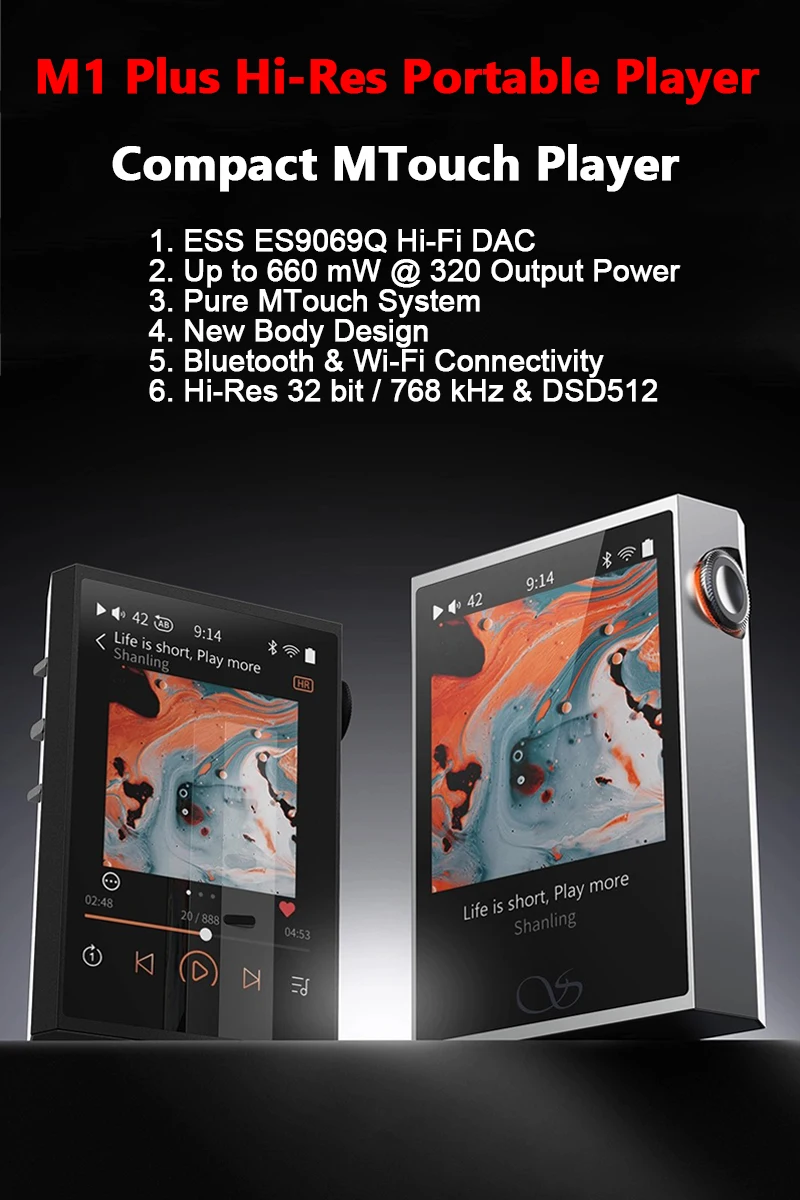

Introduce M1 plus

Earlier this year, we released Shanling M5 Ultra. Marking our return to simpler players using MTouch system with a full focus on pure music playback.

Sandwiched into a compact body made of aluminium and glass, adapting the bolder modern design revealed with M5 Ultra and measuring just 86 x 61 x 17mm at only 116 grams. With 3.2-inch screen for ideal balance between touch screen controls and compact size for daily use.
