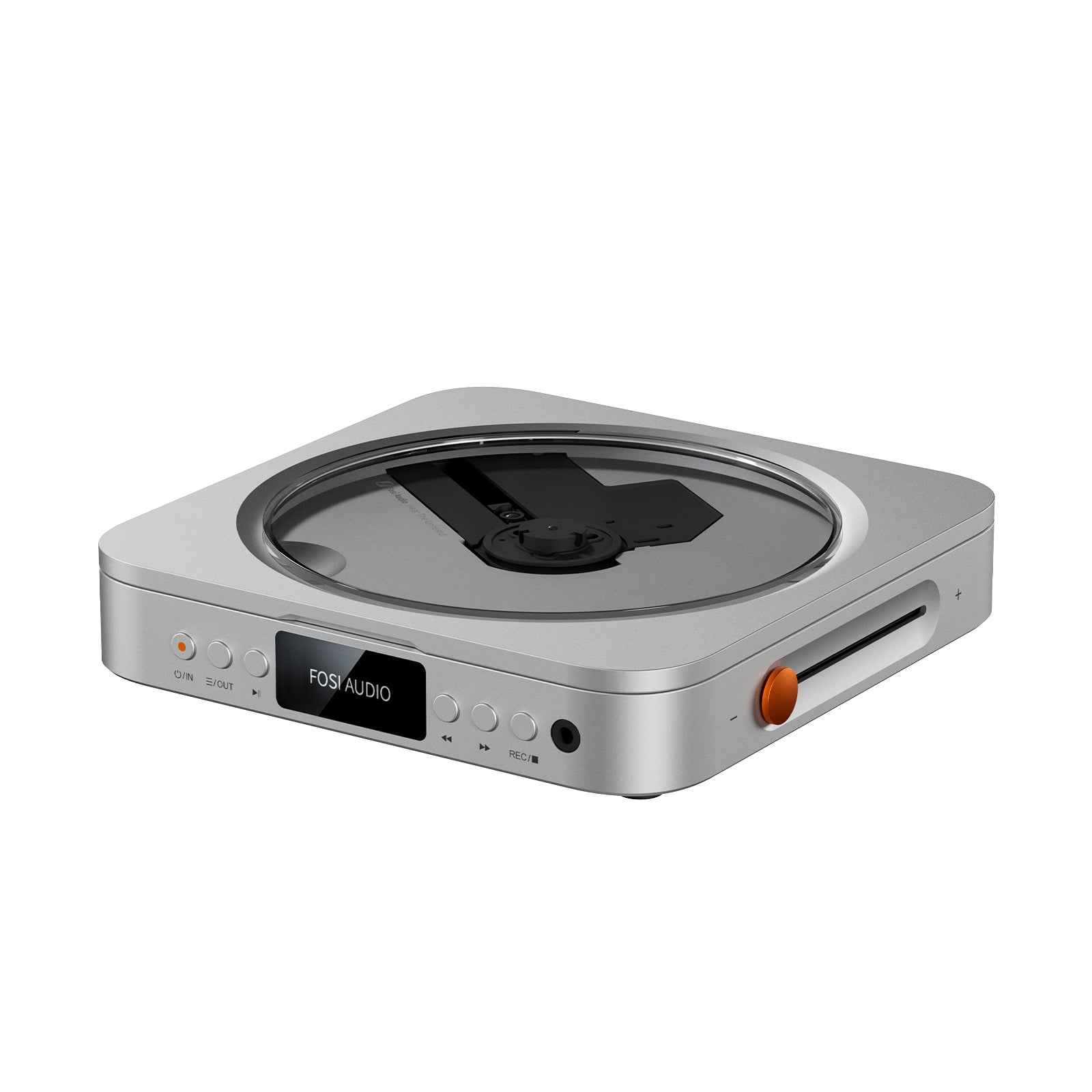

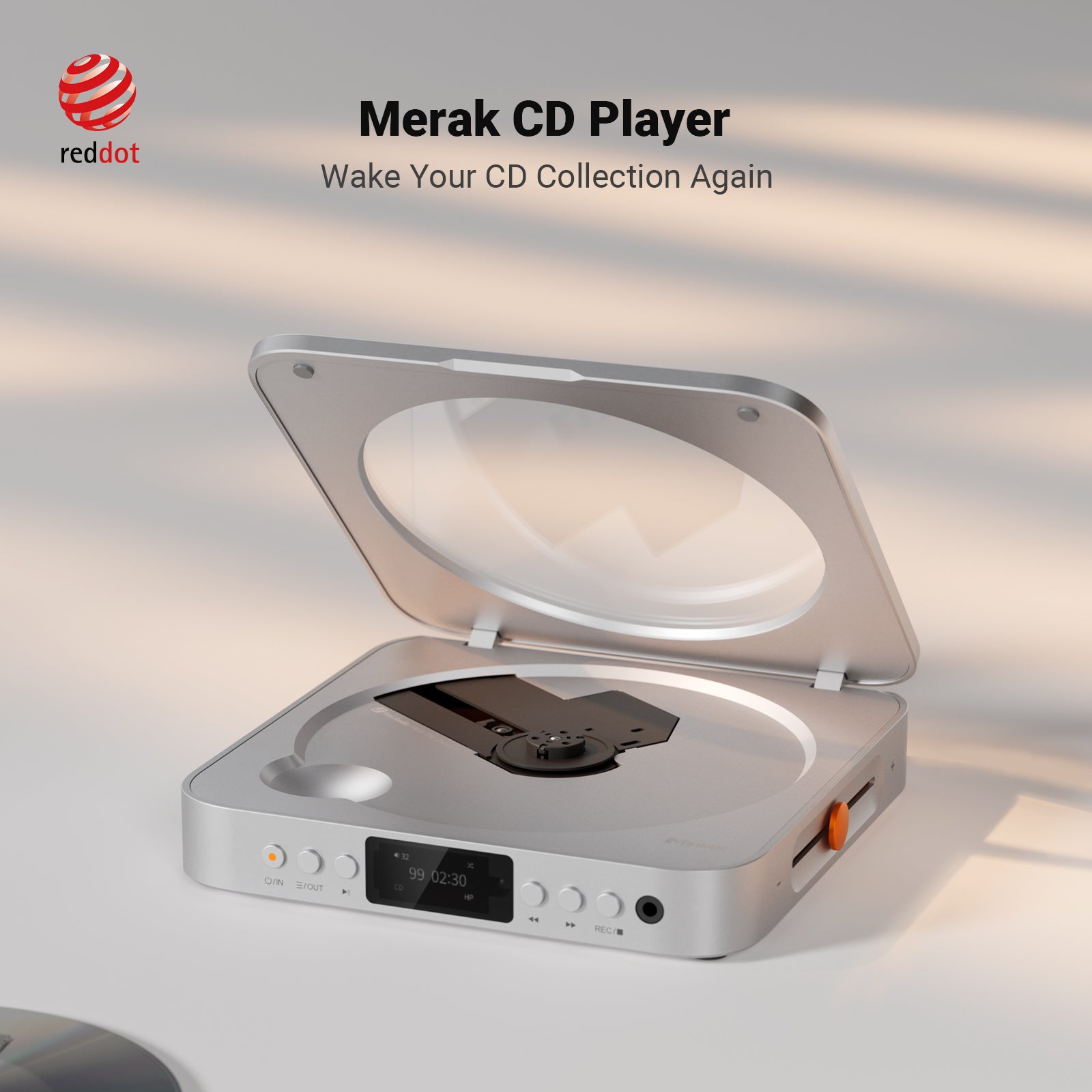

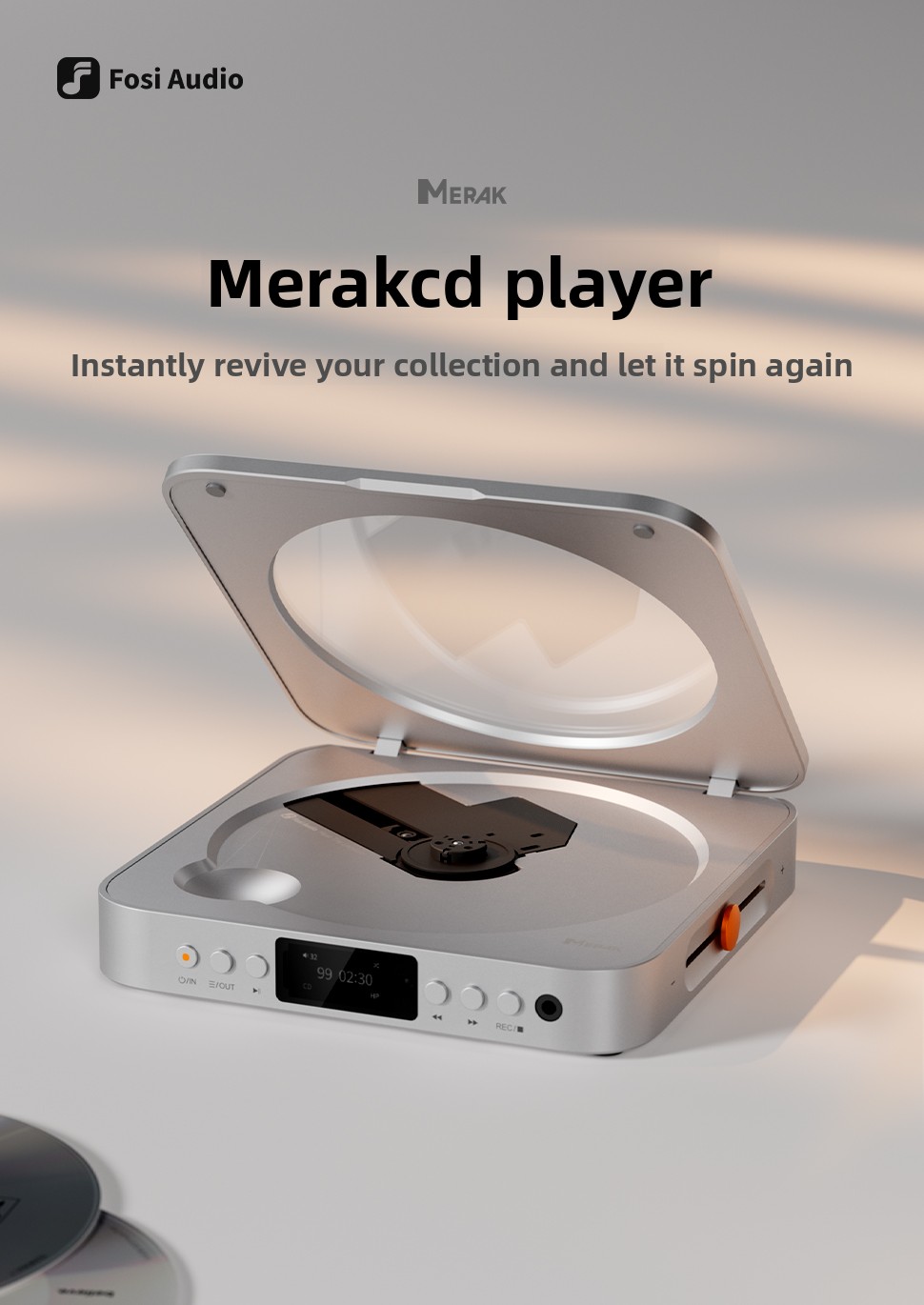

Fosi Audio Merak CD Player

Description

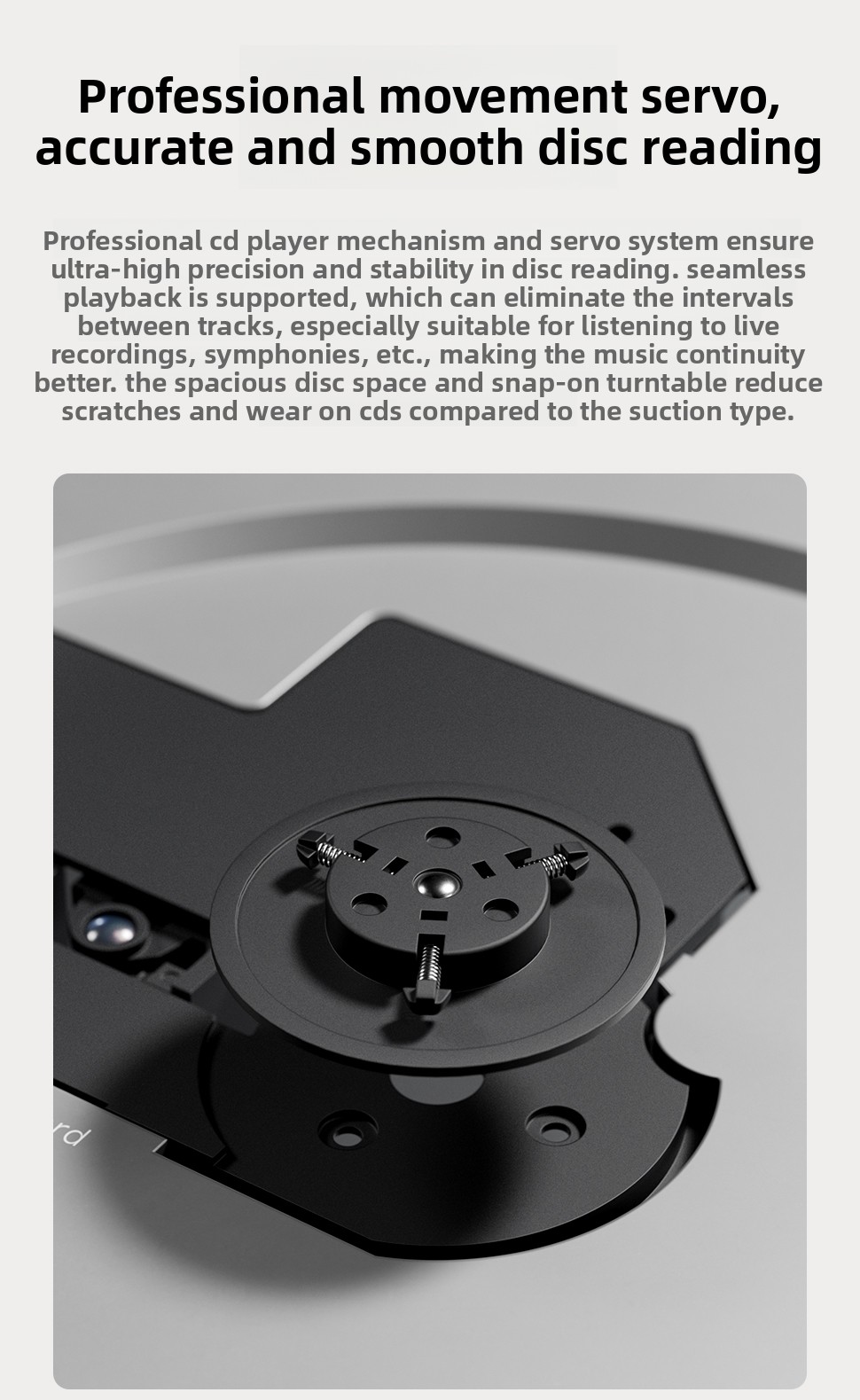

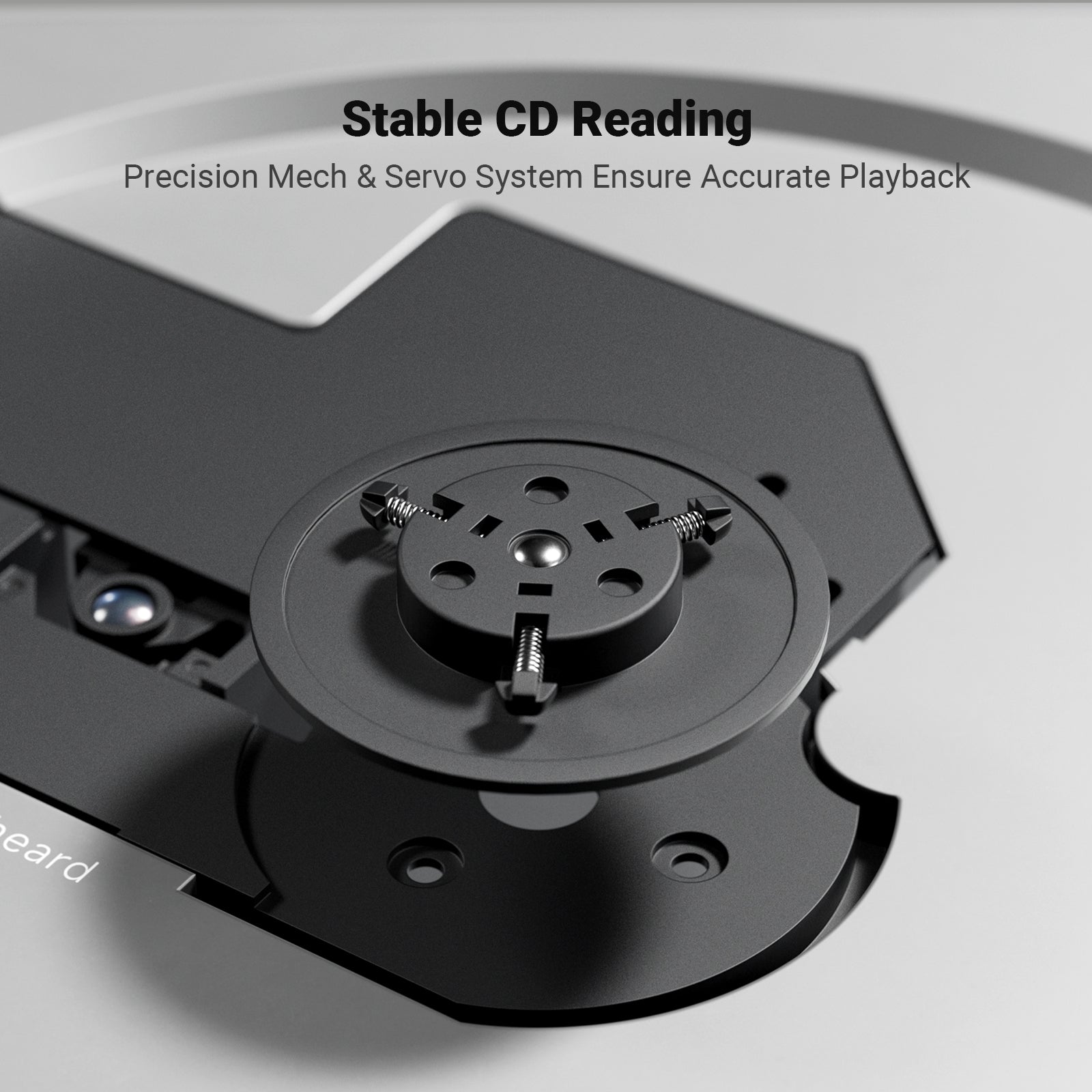

Precision CD Transport: Optimized servo system ensures accurate disc reading, smooth playback, and reduced wear, supporting stable long-term performance and consistent audio output.
All-in-One Audio Design: Combines CD player, DAC, and headphone amplifier in one unit, simplifying setup while maintaining low distortion and clear signal reproduction.

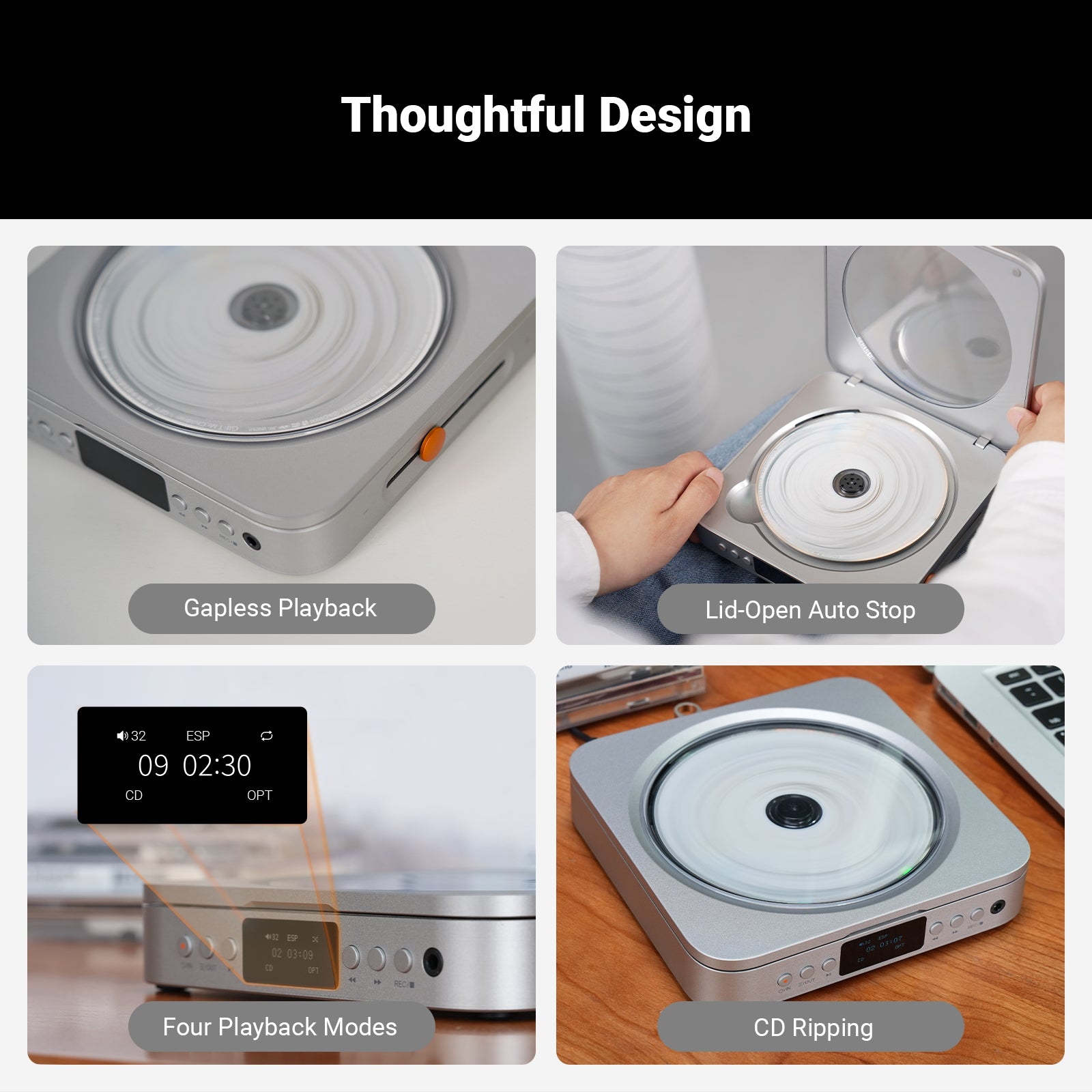

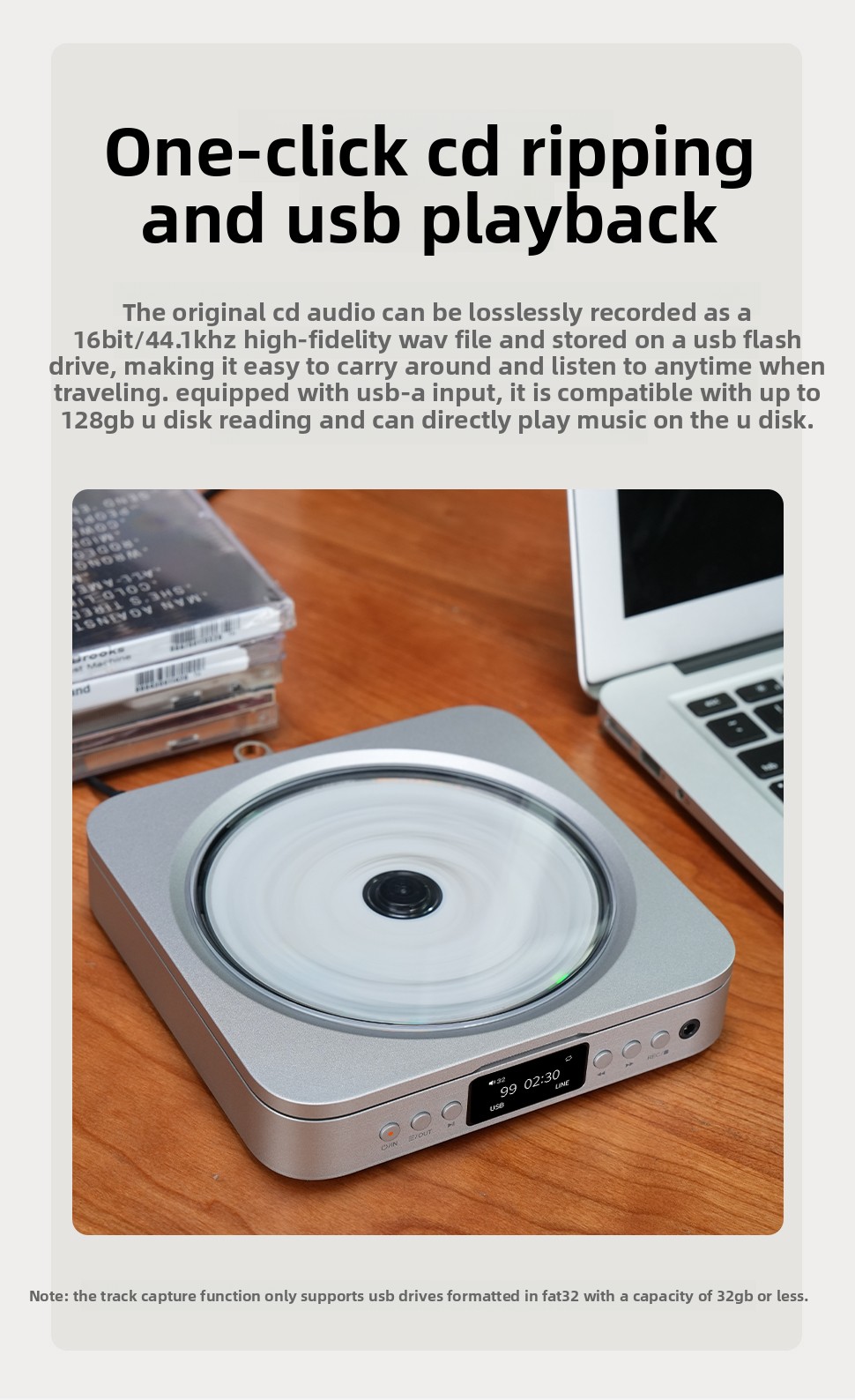

CD Ripping & USB Playback: Supports CD ripping to USB and direct playback, enabling easy conversion to digital files and convenient access without additional devices.

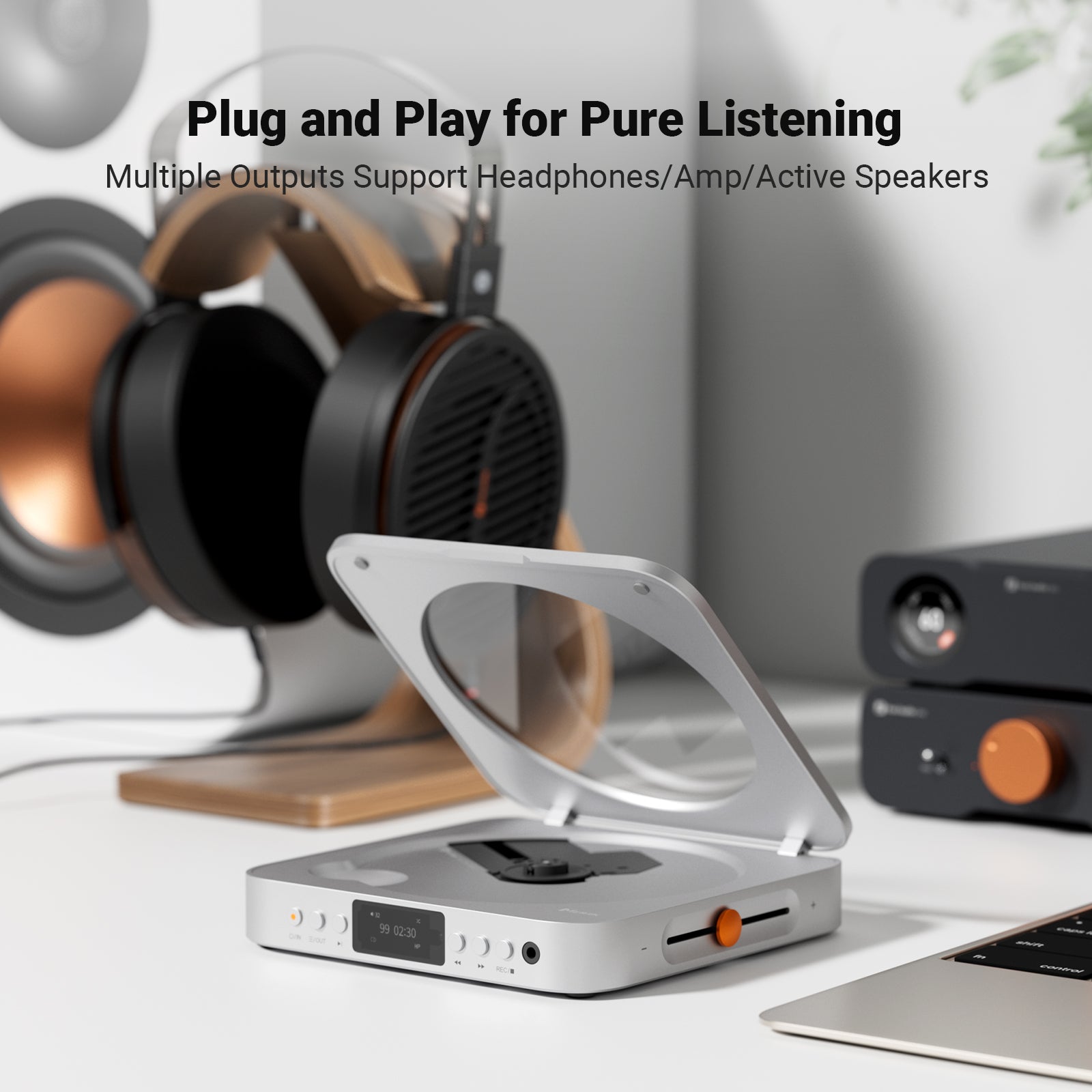

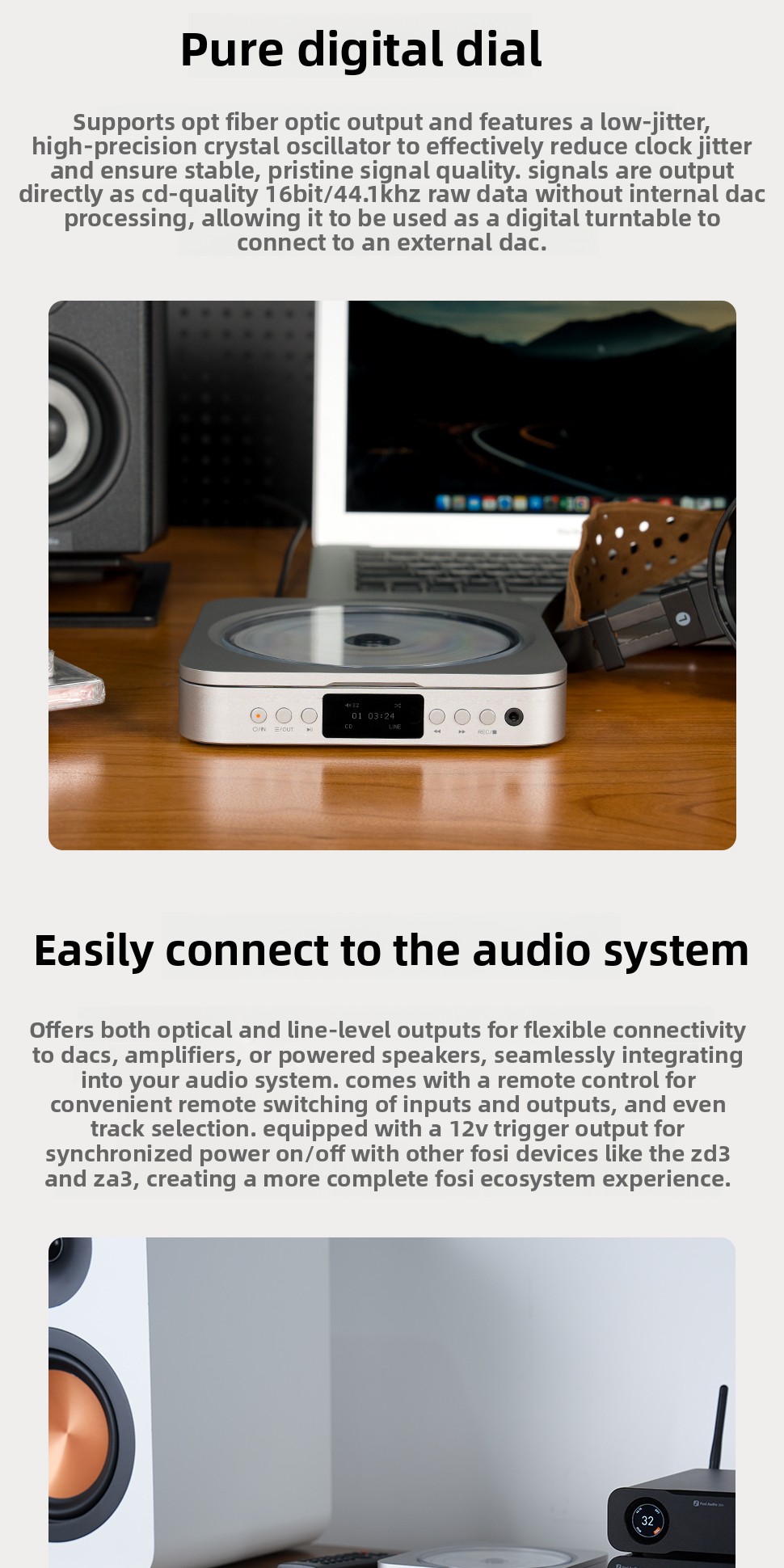

Flexible Output Connectivity: Multiple outputs support headphones, amplifiers, and active speakers, allowing seamless integration into desktop systems or larger audio setups.

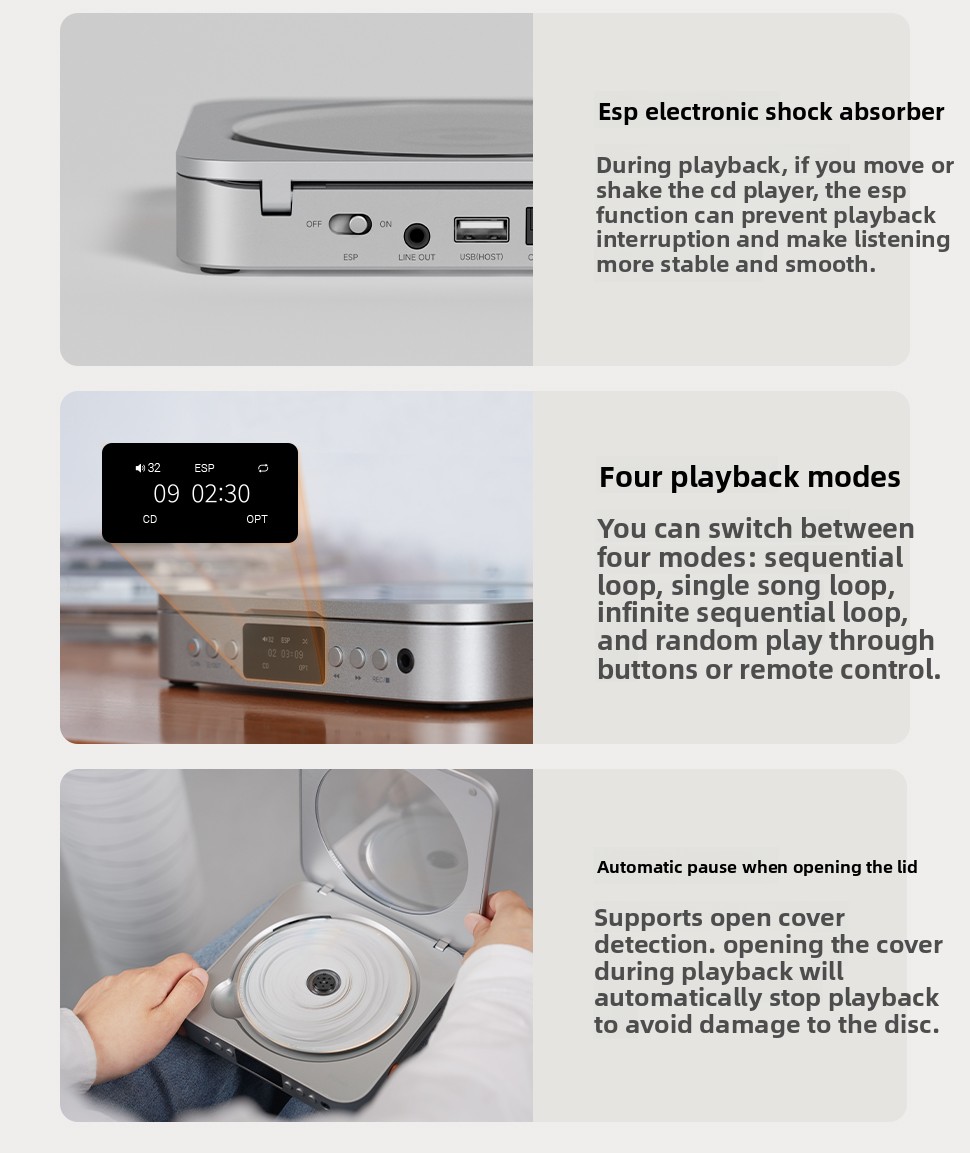

ESP Anti-Skip Protection: 60-second buffering reduces interruptions from vibration, maintaining stable playback and improving reliability in movement or less controlled environments.

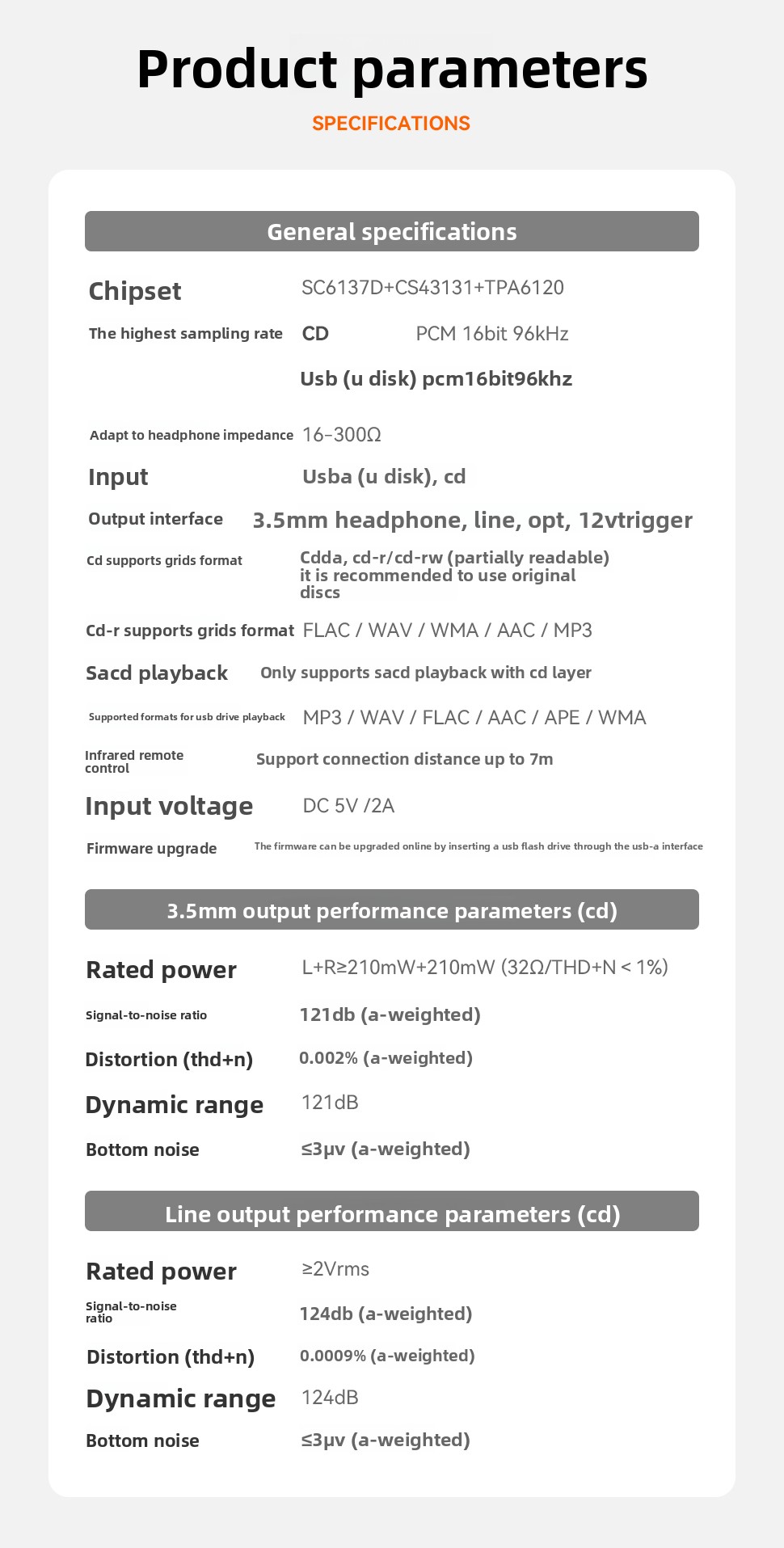

Specifications

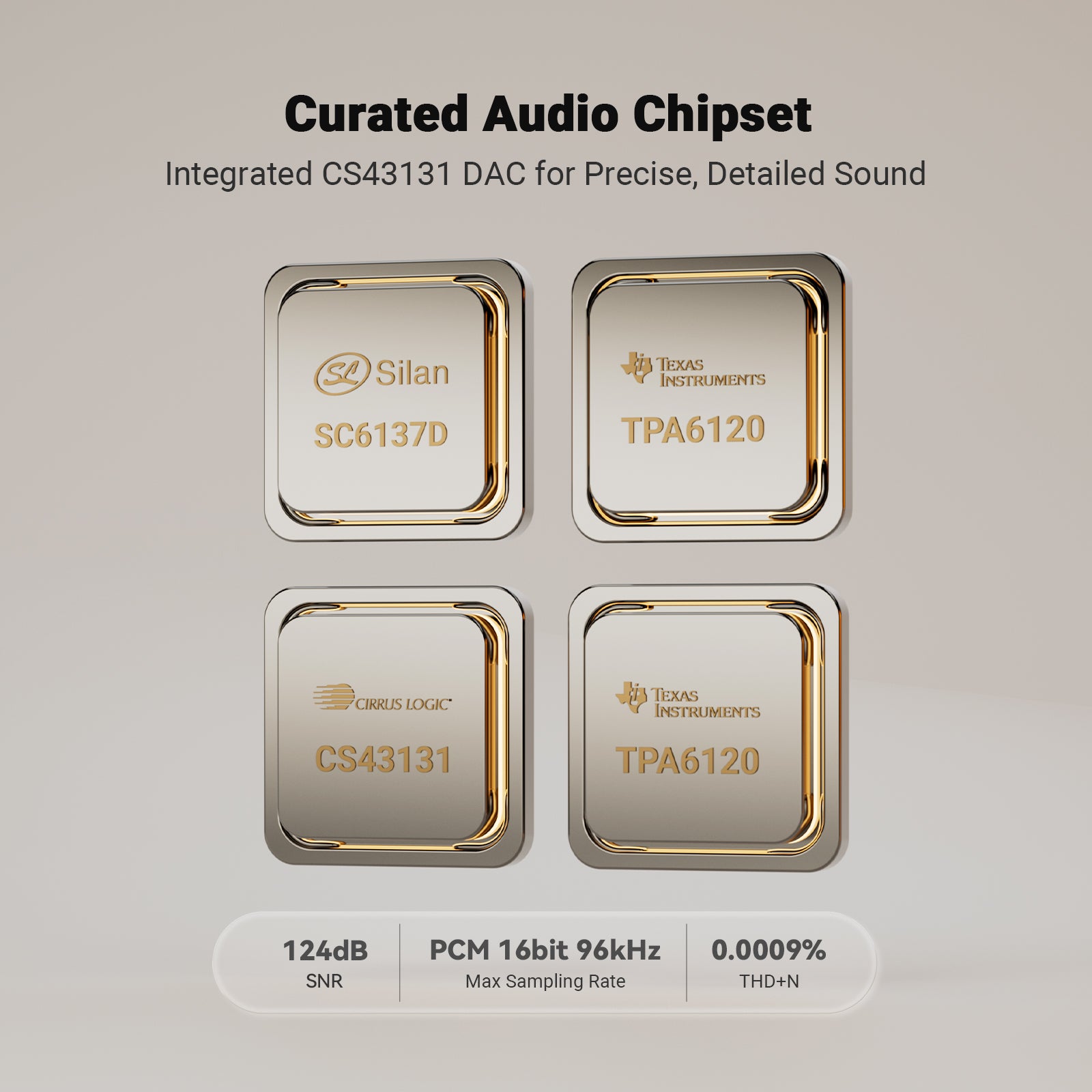

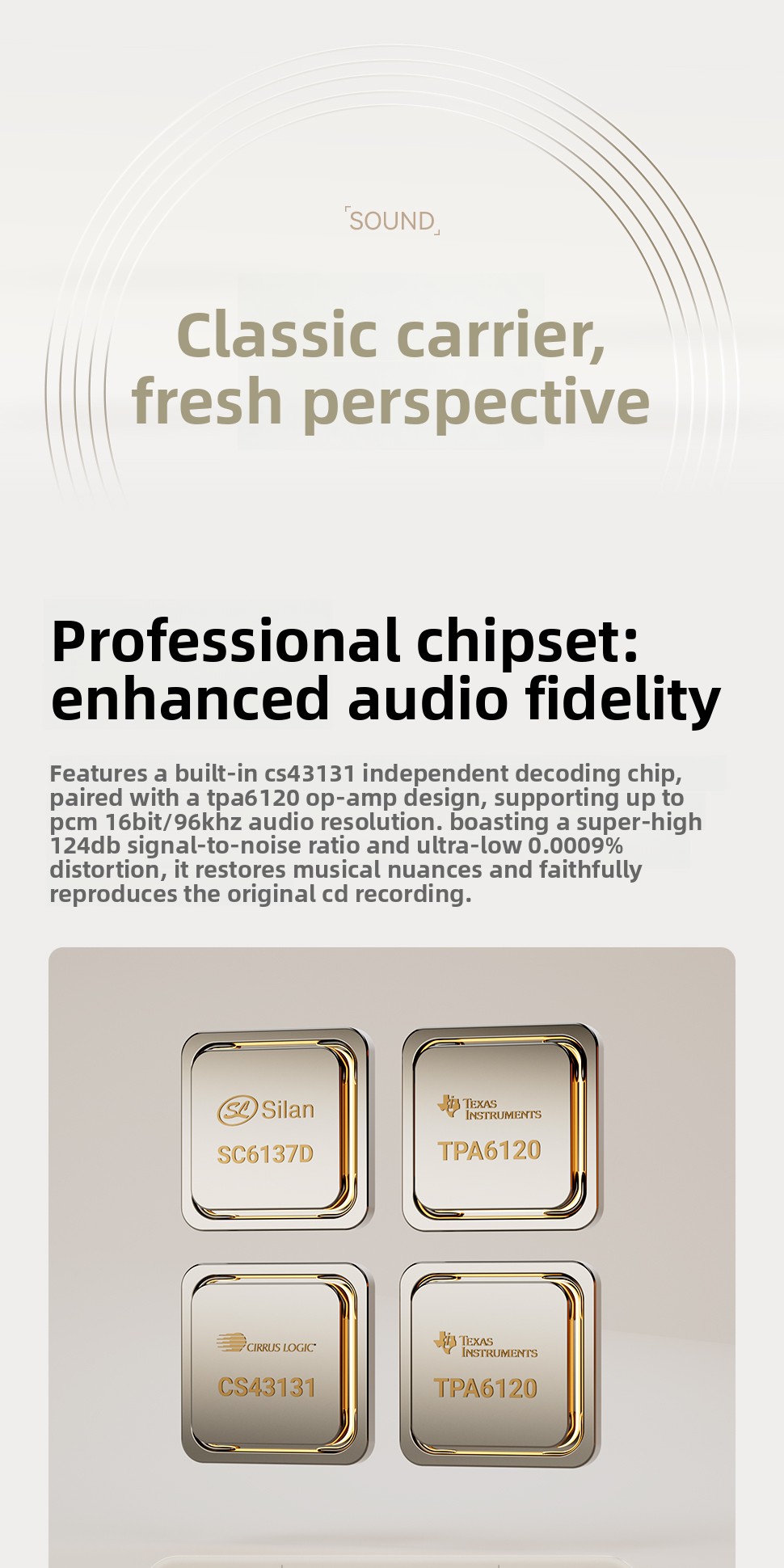

Chipset: SC6137D + CS43131 + TPA6120

Max Sampling Rate

• CD: PCM 16bit / 96kHz

• USB (USB flash drives): PCM 16bit / 96kHz


Headphone Impedance: 16–300Ω

Input: USB-A (USB flash drives), CD

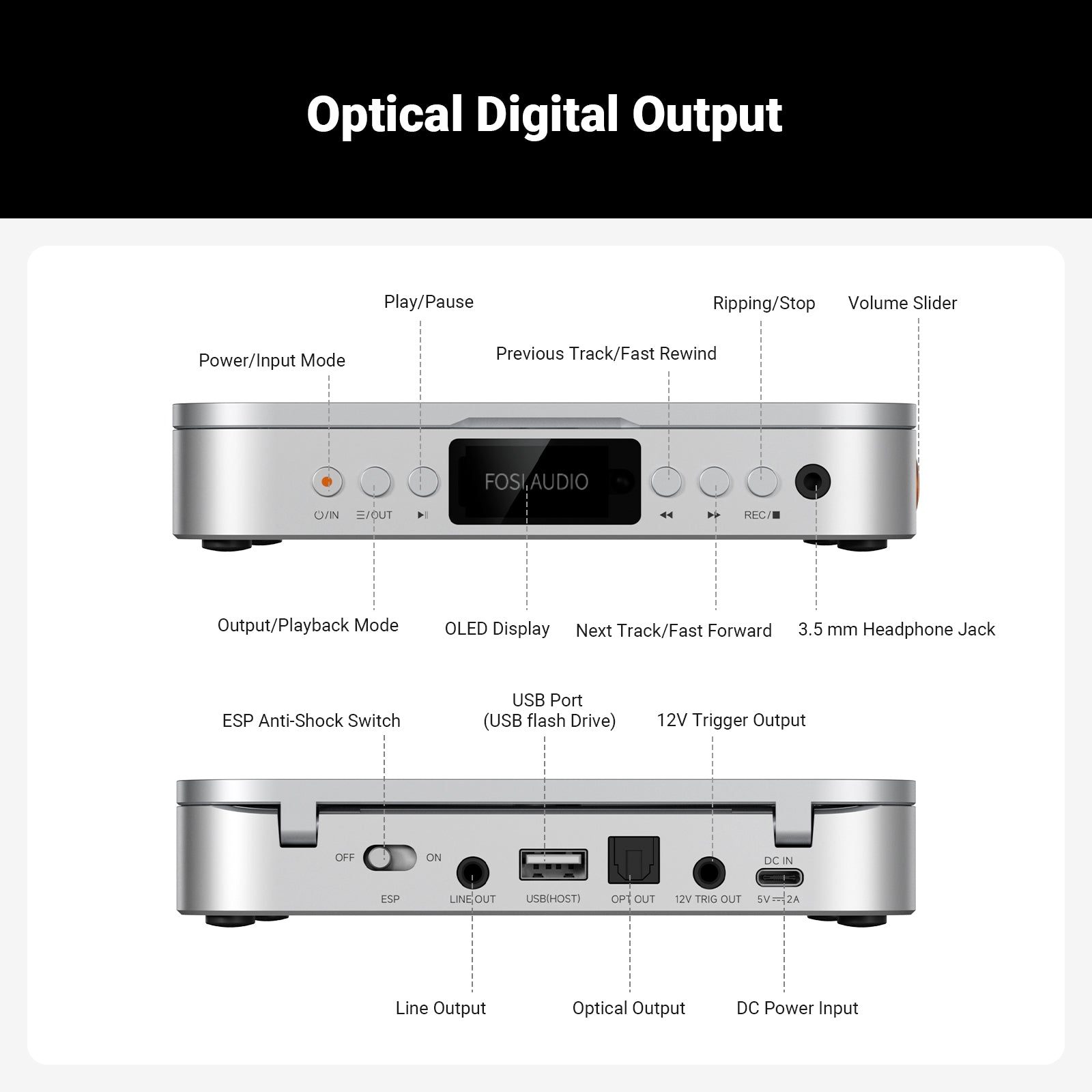

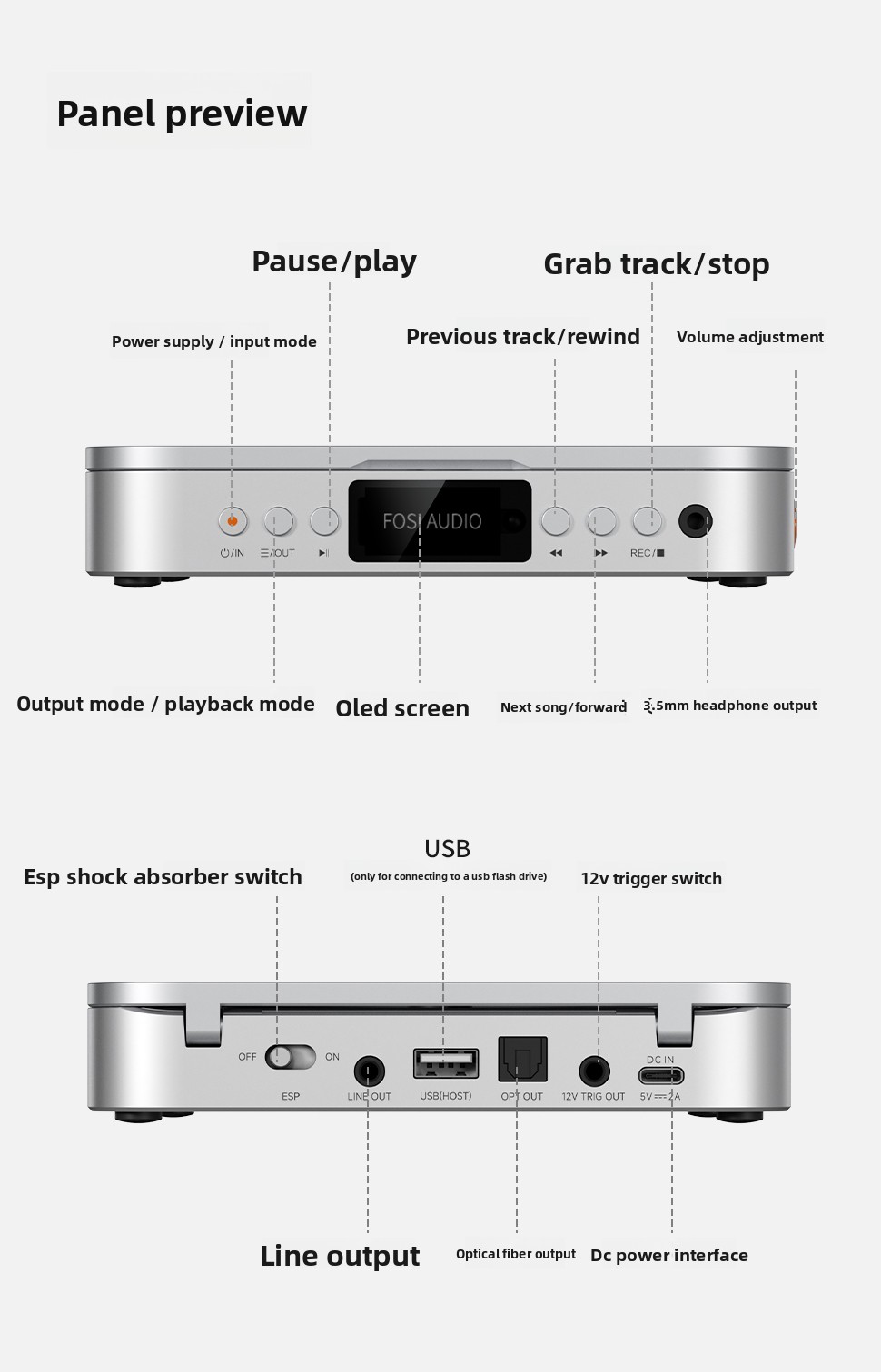

Output: 3.5mm Headphones Jack, LINE, OPT, 12V Trigger

CD Formats: CDDA, CD-R / CD-RW (partially readable). Original pressed discs are recommended

CD-R Formats: FLAC / WAV / WMA / AAC / MP3

SACD Playback: Only SACDs with a CD layer are supported

Formats for USB Drive Playback: MP3 / WAV / FLAC / AAC / APE / WMA

IR Remote Control: Supports a maximum operating distance of up to 7 meters

Input Voltage: DC 5V / 2A

Firmware Upgrade: Firmware can be updated online via a USB-A port using a USB flash drive

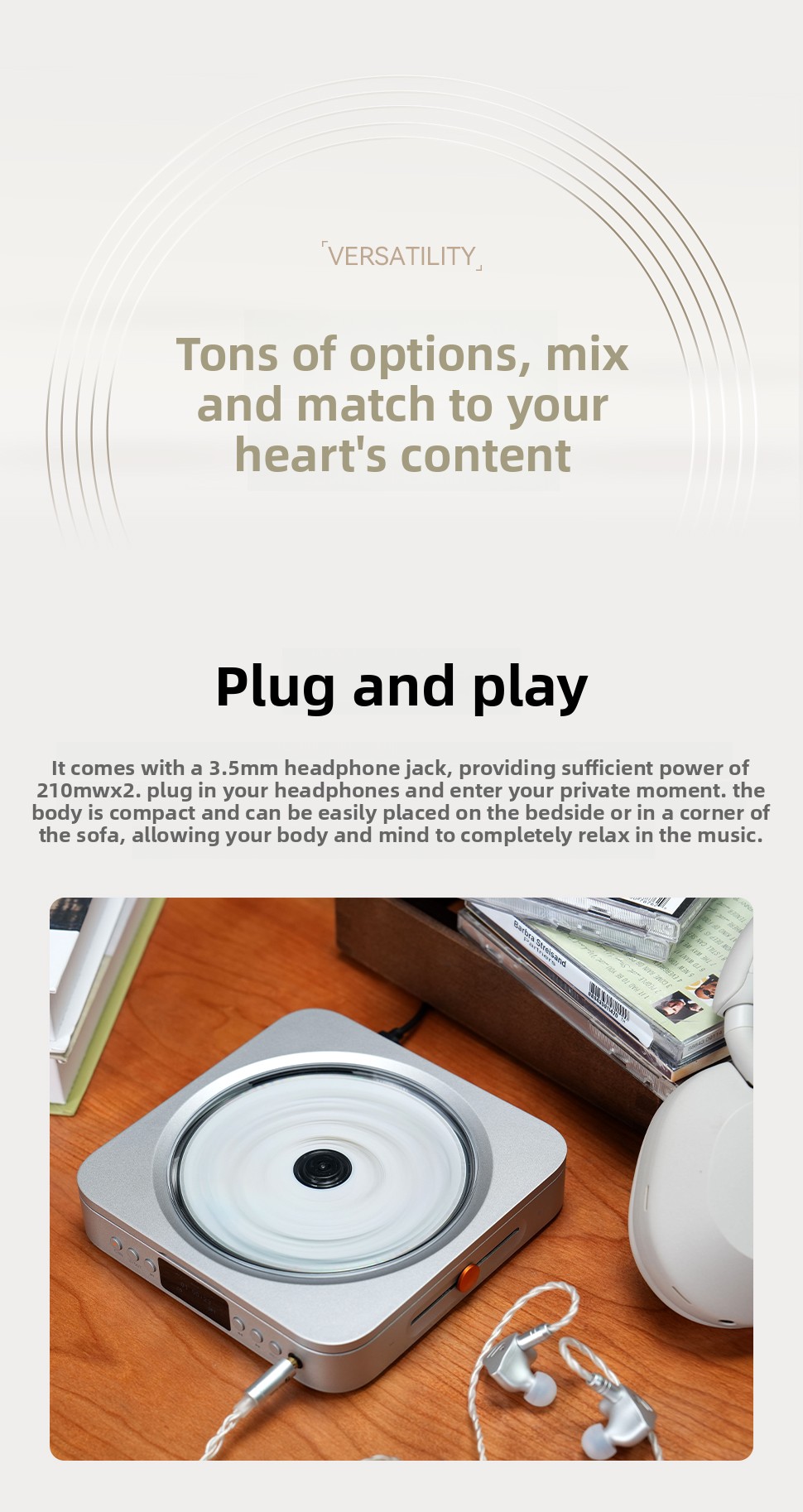

3.5mm Output Performance (CD)

Rated Output Power: L+R ≥ 210mW + 210mW (32Ω / THD+N < 1%)

SNR: 121 dB (A-weighted)

THD+N: 0.002% (A-weighted)

Dynamic Range: 121 dB

Noise Floor: ≤ 3µV (A-weighted)

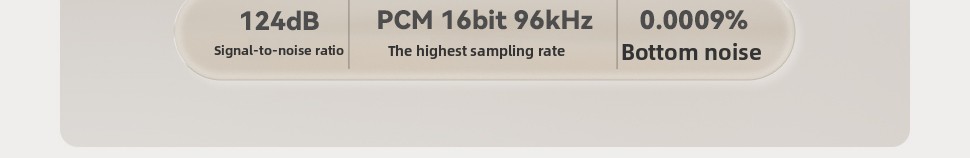

LINE Output Performance (CD)

Output Level: ≥ 2Vrms

SNR: 124 dB (A-weighted)

THD+N: 0.0009% (A-weighted)

Dynamic Range: 124 dB

Noise Floor: ≤ 3µV (A-weighted)

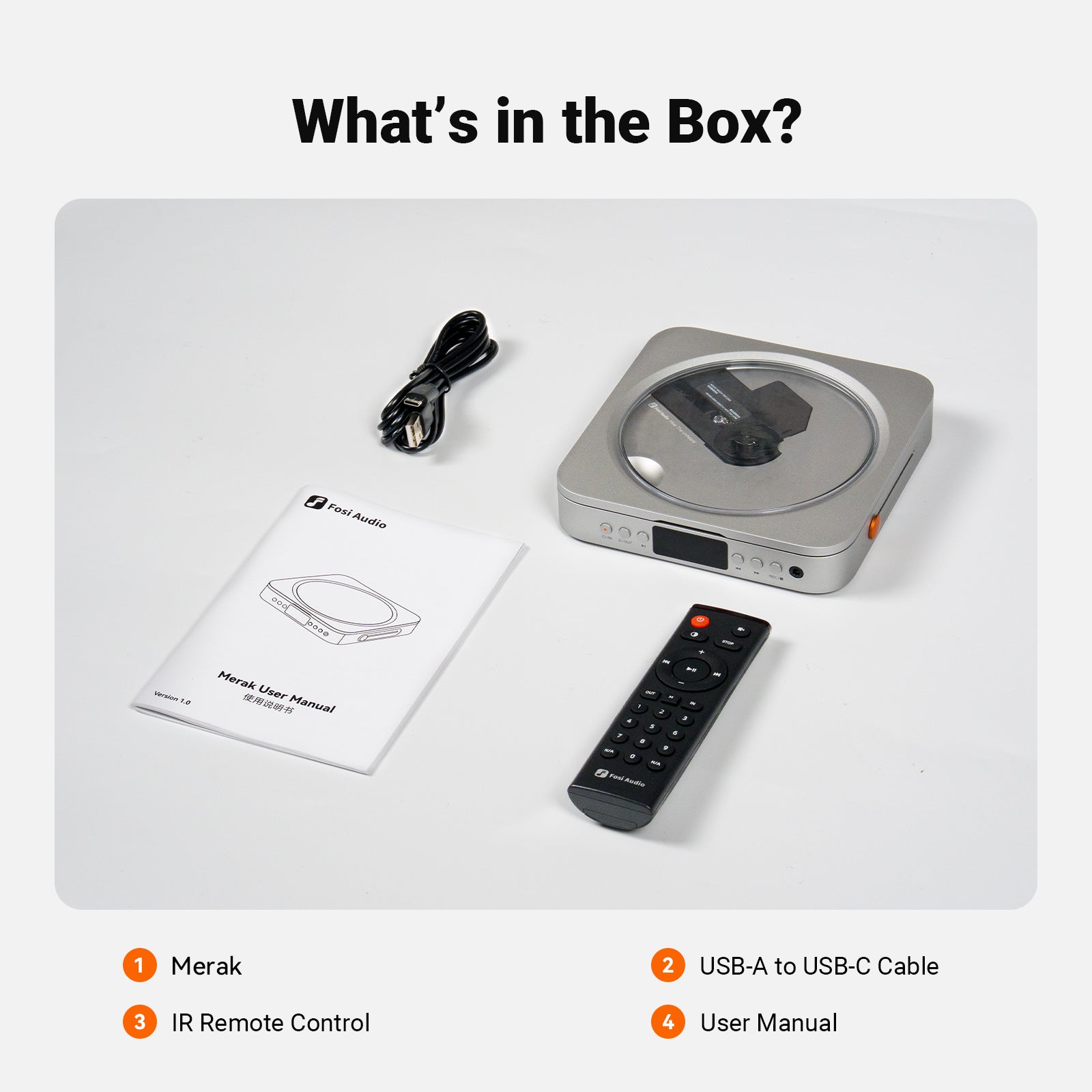

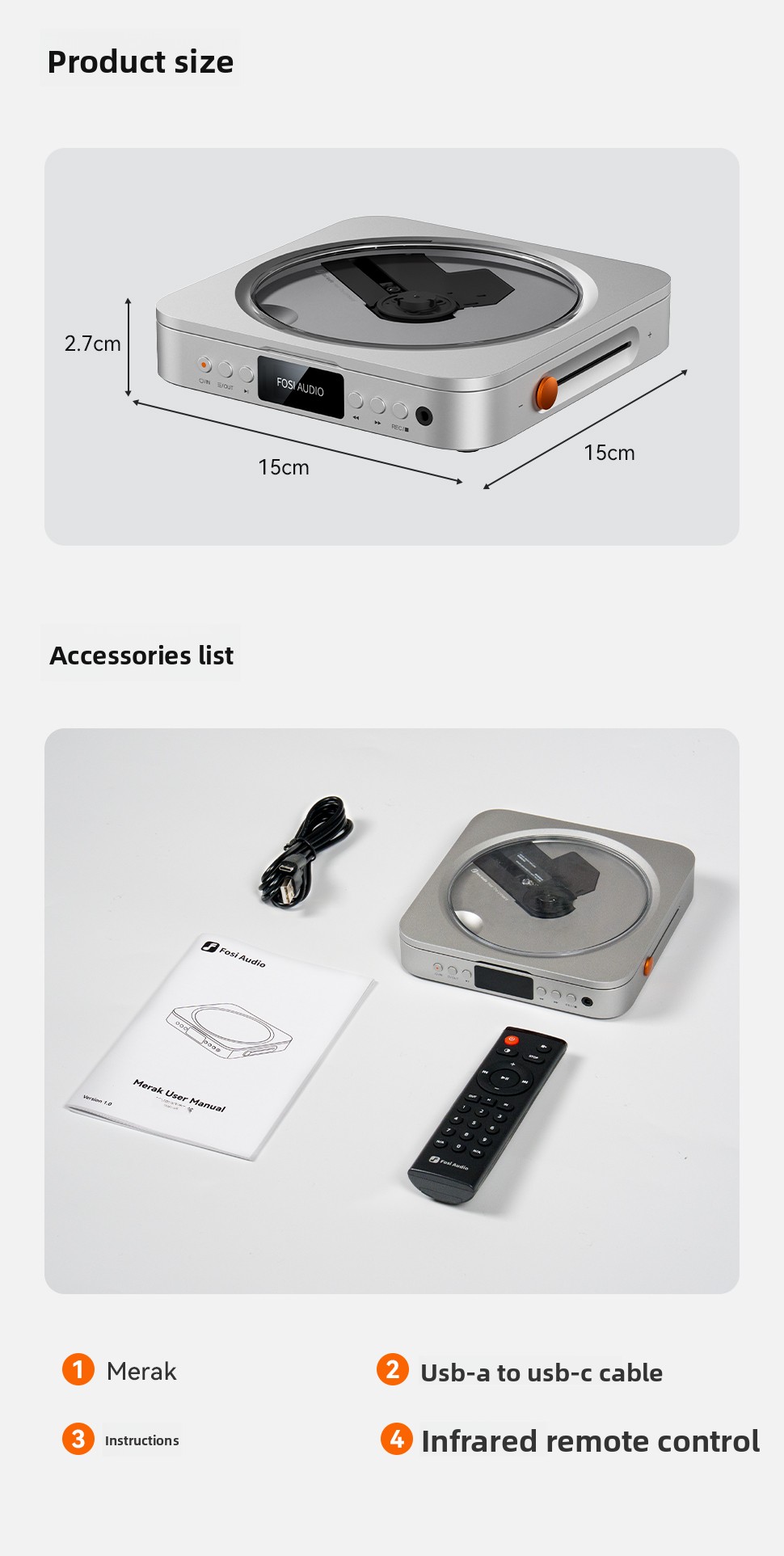

What's in the box?

• Merak
• USB-A to USB-C Cable
• IR Remote Control
• User Manual
