TINHIFI P1 MAX 14.2mm Planar Magnetic Driver In Ear Earphone IEMs

Features:

• 14.2mm Planar Magnetic Drivers.
• Redesigned Acoustic Cavity Structure.
• All new designer looks with 3D printed cavity and Stainless Steel face-covers.
• Ultra-thin(2-Micron) Aluminum diaphragm.
• Easy to drive.
• Excellent sound clarity with fast response.
• Wide frequency response range.
• High-Purity monocrystalline copper cable.
• Two-pin connectors.
• Lightweight and Comfortable.

Technical Specifications:

• Impedance: 16Ω±15%.
• Frequency response range: 10Hz-20kHz.
• Sensitivity: 98±3dB@1kHz.
• Rated Power: 5mW.
• Max Power: 10mW.
• Max distortion: 3%@1kHz.
• 3.5mm balanced gold-plated termination plug.

Tin HiFi is back again with a brand new Planar magnetic driver IEM, the Tin HiFi P1 Max. With years of experience in designing multiple successful planar-magnetic IEMs, Tin HiFi has achieved better driveability, comfortable fit, and new design, with the latest P1 Max. They have designed a brand new 14.2mm planar magnetic drive that uses an ultra-thin Aluminum diaphragm producing fast and punchy sound performance. This new driver has lower power requirements and hence the P1 Max is very easy to power compared to the previous planar-magnetic IEMs from Tin HiFi!!!

Upgraded Planar Magnetic Driver Architecture:

Tin HiFi has years of experience in designing planar magnetic earphones. All of their models including the P1, P1 Plus, and P2. For the latest P1 Max, Tin HiFi has redesigned the planar driver architecture with a new 14.2mm planar driver that adopts an ultra-thin lightweight aluminum diaphragm. The driver here uses powerful Neodymium N52 magnetic circuit. With the newly-designed aluminum diaphragm, the Planar driver here is easy to power.

Easy Driveability:

The new P1 Max has got a low impedance of just 16Ω along with a fairly high sensitivity of 98dB. It offers easy driveability supporting most portable sources out there.

Newly Designed Acoustic Structure:

The 14.2mm planar magnetic driver here adopts a newly designed acoustic cavity structure. Tin HiFi has professionally designed the acoustic cavity structure here so as to churn out the best performance from the planar magnetic driver. It helps to achieve a wide sound stage, clear instrument details, a better body throughout the frequency range, and a lively yet smooth treble section.

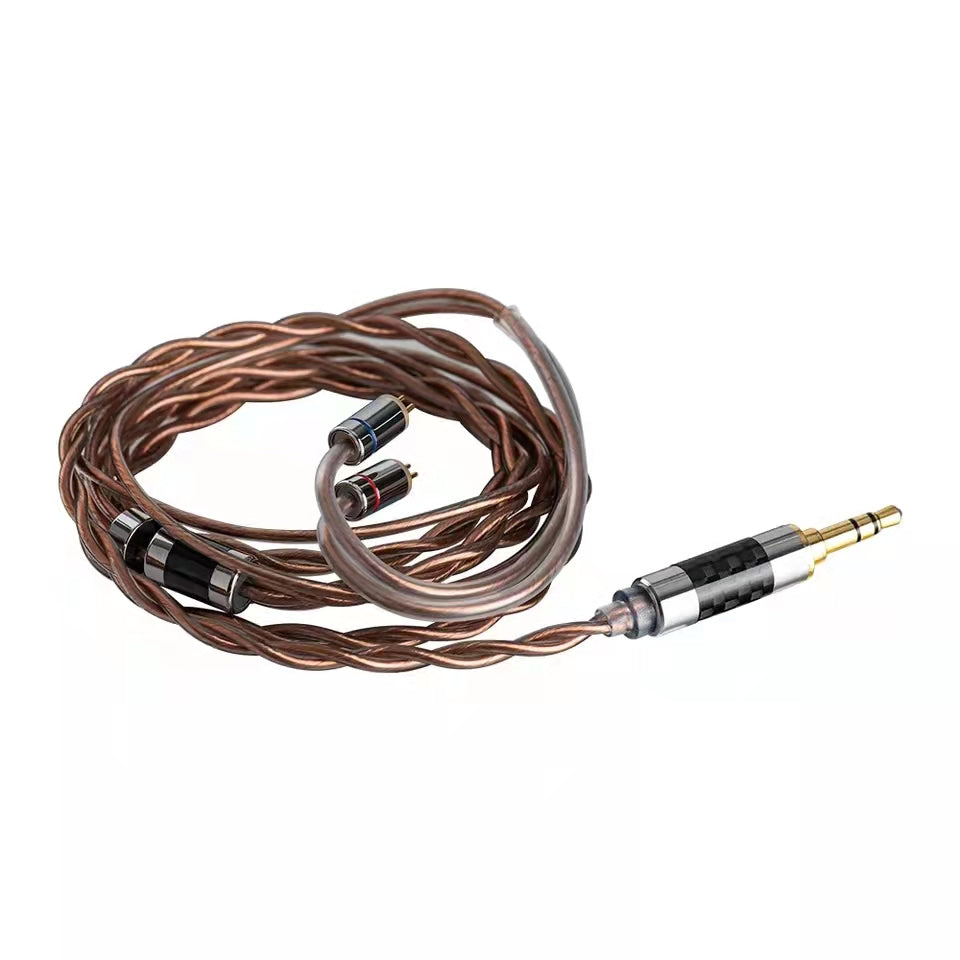

High-Purity Monocrystalline Copper Cable:

Tin HiFi packs the P1 Max with a high-purity monocrystalline copper cable. This cable has a 108-core configuration with smooth and warm sound signal transmission. The cable has 2-pin gold-plated connectors and a standard 3.5mm termination plug.

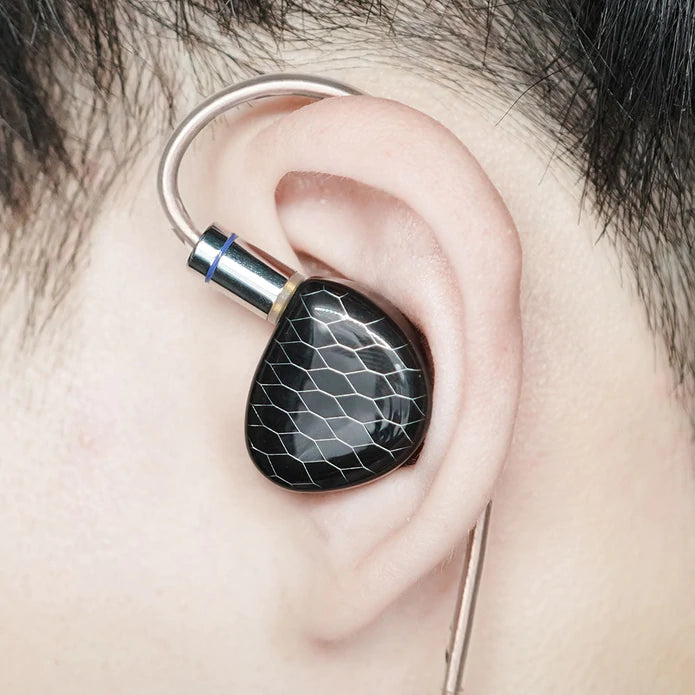

Ergonomic 3D-Printed Cavities:

The previous models from Tin HiFi in the P series of planar magnetic earphones had metallic shells. They were slightly on the heavier side too. The latest P1 Max has got 3D printed Resin inner cavity along with stainless steel torch array wire 3D drawing face covers. The pair weighs only 4.8 grams, and with an ergonomic shape, they are extremely comfortable to wear.
